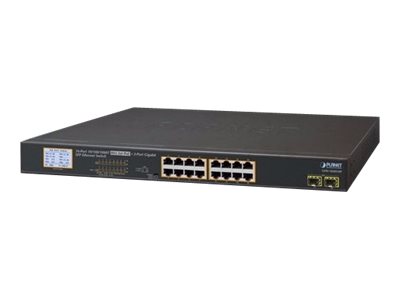

Planet Switch 16 x 10/100/1000 + 2 x Gigabit SFP an Rack montierbar PoE+ 300 W 16-Port 10/100/1000T 802.3at PoE + 2-Port Ethernet with LCD Monitor

Planet Switch 16 x 10/100/1000 + 2 x Gigabit SFP an Rack montierbar PoE+ 300 W 16-Port 10/100/1000T 802.3at PoE + 2-Port Ethernet with LCD Monitor

Produktbeschreibung:

16x 10/100/1000BASE-T Gigabit RJ45 copper 2x 1000BASE-X
mini-GBIC SFP interfaces   Power over Ethernet:
Complies with IEEE 802.3af/at Power over Ethernet
end-span PSE Up to 16 ports of IEEE 802.3af/802.3at
devices powered Supports PoE power up to 32 watts
for each PoE port Each port supports 54V DC power
to PoE powered device 300-watt PoE budget Auto
detects powered device (PD) Circuit protection
prevents power interference between ports Remote
power feeding up to 100m in standard mode and
250m in extend mode   Smart LCD: LCD switch mode
for "Standard",
"VLAN" and "Extend" mode selection; the “Extend”
mode features 30-watt PoE transmit distance of
250m at speed of 10Mbps and VLAN isolation Solid
LCD switch mode to isolate ports to prevent broadcast
storm and defend DHCP spoofing Power low-voltage,
power over-voltage and PSE over-temperature protection Screen saver,
fan control, factory default and save configuration
PoE management ?Total PoE power budget control
Per port PoE function enable/disable PoE port
power feeding priority Per PoE port power limitation
PD alive check   Switching: Hardware-based 10/100/1000Mbps
auto-negotiation and auto MDI/MDI-X Flow control
for full duplex operation and back pressure for
half duplex operation 9216bytes packet size Integrates
address look-up engine,
supporting 8K absolute MAC addresses IEEE 802.1Q
VLAN transparency Automatic address learning and
address aging   Hardware: 19-inch desktop size,
1U height, rack mountable 2-inch color LCD with
smart management functions LED indicators for system power,
per port PoE ready and PoE activity, speed, Link/Act
3 silent fans to provide stable and efficient
power performance Supports Energy-Efficient Ethernet
(EEE) function (IEEE 802.3az) Supports contact
discharge of ±6KV DC and air discharge of ±8KV
DC for Ethernet ESD protection Supports ±6KV surge immunity

Technische Details:
