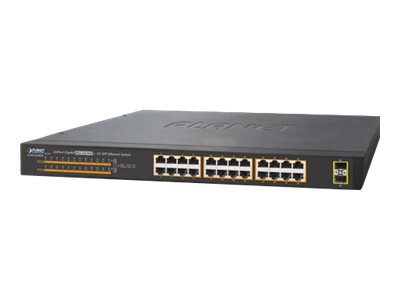

Planet Switch 24 x 10/100/1000 PoE+ + 2 x Gigabit SFP Desktop an Rack montierbar 220 W

Planet Switch 24 x 10/100/1000 PoE+ + 2 x Gigabit SFP Desktop an Rack montierbar 220 W

Produktbeschreibung:

24-port 10/100/1000BASE-T Gigabit RJ45 copper
2 1000BASE-X mini-GBIC/SFP slots unmanaged   Power
over Ethernet Complies with IEEE 802.3at High
Power over Ethernet Complies with IEEE 802.3af
Power over Ethernet Up to 24 ports of IEEE 802.3af/802.3at
devices powered Supports PoE Power up to 30.8
watts for each PoE port Each port supports 52V
DC power to PoE Powered Device 220-watt PoE budget
Auto detects powered device (PD) Circuit protection
prevents power interference between ports Remote
power feeding up to 100m   Switching Hardware
based 10/100/1000Mbps auto-negotiation and auto
MDI/MDI-X Flow control for full duplex operation
and back pressure for half duplex operation Integrates
address look-up engine,
supporting 8K absolute MAC addresses 9K jumbo
frame supports all speeds (10/100/1000Mbps) IEEE
802.1Q VLAN transparency Automatic address learning
and address aging Supports Energy-Efficient Ethernet
(EEE) function (IEEE 802.3az)   Hardware 19-inch desktop size,
1U height LED indicators for PoE ready and PoE
activity Ethernet Link Energy-saving technology
- Link down power saving - Intelligent scale power
based on cable length   Cost-optimized,
Configure-free Gigabit PoE+ Switch for System
Integrators PLANET GSW-2620HP,
an ideal Gigabit PoE Switch, provides a cost-effective
advantage to local area networks of SMBs.
Offering Layer 2 data packet switching and stable operation,
this model also complies with IEEE 802.3at Power
over Ethernet Plus (PoE+) at an affordable price.
The GSW-2620HP is equipped with 24 10/100/1000BASE-T
Gigabit Ethernet ports and 2 1000BASE-X SFP interfaces
with inner power system.
Its 24 Gigabit Ethernet ports are integrated with
an 802.3at PoE+ injector function.
It offers a rack-mountable, safe and reliable
power solution for SMBs deploying Power over Ethernet networks.
   IEEE 802.3at/af Compliant Power Source Switch
The PoE in-line power following the IEEE 802.3at/af
standard makes the GSW-2620HP able to deliver
Gigabit speed data and up to 30 watts of power
per port to 24 PoE compliant powered devices (PDs)
with a combined power output budget of up to 220 watts.
The GSW-2620HP provides more flexibility in power
requirement for all kinds of PDs with affordable
installation costs.
   Energy-saving Design The GSW-2620HP uses new
engine that incorporates two advanced Green Networking
technologies: Idle Mode Link Down power saving
Intelligent Scale Power based on cable length
  The Idle Mode Link Down power saving of the
GSW-2620HP complies with IEEE 802.3az Energy Efficient
Ethernet (EEE) standard to automatically lower
power for a given port when it is not linked.
The Intelligent Scale Power technology actively
determines the appropriate power level based on
the cable length.
When connecting to the GSW-2620HP with Ethernet
cable shorter than 20m,
a device can obtain maximum power saving because
the GSW-2620HP would automatically detect the
Ethernet cable length and reduce power usage.
The connected device can substantially reduce
the overall power consumption,
which makes a significant contribution to energy saving.
   Easy Installation and Cable Connection Providing
data transfer and high PoE in one unit,
the GSW-2620HP is able to reduce the need of extended
cables and electrical outlets on the wall,
ceiling or any unreachable place. It helps to
lower the installation costs and simplify the
installation effort.
All RJ45 copper interfaces of the GSW-2620HP support
10/100/1000Mbps auto-negotiation for optimal speed
detection through RJ45 Category 6,
5 or 5e cables. It also supports standard auto-MDI/MDI-X
that can detect the type of connection to any
Ethernet device without requiring special straight-through
or crossover cables.
  Flexible Extension Solution The two mini-GBIC
slots built in the GSW-2620HP are compatible with
the 1000BASE-SX/LX SFP (Small Form-factor Pluggable)
fiber transceiver,
uplinked to backbone switch and monitoring center
in long distance.
The distance can be extended from 550 meters (multi-mode
fiber) to 10/20/30/40/50/60/70/120 kilometers
(single-mode fiber or WDM fiber).
They are well suited for applications within the
enterprise data centers and distributions.
