Produktbeschreibung:

8-Port 10/100/1000BASE-T Gigabit RJ45 copper with
4-ort IEEE 802.3at/af PoE Injector (Port-1 to
Port-4)   Power over Ethernet Complies with IEEE
802.3at Power over Ethernet Plus,
end-span PSE Backward compatible with IEEE 802.3af
Power over Ethernet Up to 4 ports of IEEE 802.3af/802.3at
devices powered Supports PoE power up to 36 watts
for each PoE port Auto detects powered device
(PD) Circuit protection prevents power interference
between ports Remote power feeding up to 100 meters
PoE management - Total PoE power budget control
- Per port PoE function enable/disable - PoE port
power feeding priority - Per PoE port power limitation
- PD classification detection - PD alive check
- PoE schedule   Industrial Case/Installation Compact size,
wall-mounted, magnetic wall mount and DIN-rail
design IP30 metal case protection Supports -40
to 75 degrees C operating temperature Supports
ESD 8KV DC Ethernet protection   Redundant power
design 48V~56V DC wide power input   Switching
Hardware based 10/100Mbps,
half/full duplex and 1000Mbps full duplex mode,
flow control and auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed
filtering and forwarding rates IEEE 802.3x flow
control for full duplex operation and back pressure
for half duplex operation 8K MAC address table
size 10K jumbo frame Automatic address learning
and address aging Supports CSMA/CD protocol
Layer 2 Features Supports VLAN - IEEE 802.1Q tagged
VLAN - Provider bridging (VLAN Q-in-Q,
IEEE 802.1ad) support - Protocol VLAN - Voice
VLAN - Private VLAN (Protected port) - Management
VLAN - GVRP Supports Spanning Tree Protocol -
STP (Spanning Tree Protocol) - RSTP (Rapid Spanning
Tree Protocol) - MSTP (Multiple Spanning Tree
Protocol) - STP BPDU Guard,
BPDU Filtering and BPDU Forwarding Supports Link
Aggregation - IEEE 802.3ad Link Aggregation Control
Protocol (LACP) - Cisco ether-channel (static
trunk) - Maximum 4 trunk groups,
up to 4 ports per trunk group Provides port mirror
(many-to-1) Loop protection to avoid broadcast
loops   Quality of Service Ingress/Egress Rate
Limit per port bandwidth control Traffic classification
- IEEE 802.1p CoS - TOS/DSCP/IP precedence of
IPv4/IPv6 packets Strict priority and Weighted
Round Robin (WRR) CoS policies   Multicast Supports
IPv4 IGMP snooping v2,
v3 Supports IPv6 MLD snooping v1, v2 IGMP querier
mode support IGMP snooping port filtering MLD
snooping port filtering   Security Storm Control
support - Broadcast/Unknown unicast/Unknown multicast
Authentication - IEEE 802.1X port-based network
access authentication - Built-in RADIUS client
to co-operate with the RADIUS servers - DHCP Option
82 - RADIUS/TACACS+ authentication Access Control
List - IPv4/IPv6 IP-based ACL - IPv4/IPv6 IP-based
ACE - MAC-based ACL - MAC-based ACE MAC Security
- Static MAC - MAC filtering Port security for
source MAC address entries filtering DHCP snooping
to filter distrusted DHCP messages Dynamic ARP
inspection discards ARP packets with invalid MAC
address to IP address binding IP source guard
prevents IP spoofing attacks DoS attack prevention
SSH/SSL   Management IPv4 and IPv6 dual stack
management Switch Management Interface - IPv4/IPv6
Web switch management - Telnet Command Line Interface - SNMP v1,
v2c, v3 - SSH and SSL secure access User privilege
levels control Built-in Trivial File Transfer
Protocol (TFTP) client Static and DHCP for IP
address assignment System Maintenance - Firmware
upload/download via HTTP /
TFTP - Configuration upload/download through HTTP /
TFTP - Hardware reset button for system reboot
or reset to factory default SNTP Network Time
Protocol Cable diagnostics Link Layer Discovery
Protocol (LLDP) Protocol and LLDP-MED SNMP trap
for interface Link-up and Link-down notification
Event message logging to remote Syslog server
Four RMON groups (history,
statistics, alarms and events) PLANET Smart Discovery
Utility     Easily-deployed and Expanded Network
Designed to be installed in a wall enclosure or
simply mounted on a wall at any convenient location,

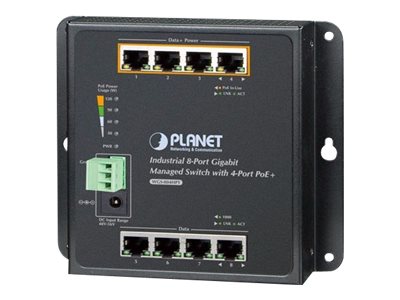

PLANET WGS-804HPT, an innovative, Industrial 8-port
10/100/1000T Wall-mounted Managed Switch with 4-Port PoE+,
offers IPv6/IPv4 dual stack management, intelligent
Layer 2 management functions,
and user-friendly interface. The WGS-804HPT is
able to operate reliably,
stably and quietly in any environment without
affecting its performance.
With a total power budget of up to 144 watts for
different kinds of PoE applications and featuring
ultra networking speed and operating temperature
ranging from -40 to 75 degrees C in a compact
but rugged IP30 metal housing,
the WGS-804HPT is an ideal solution to meeting
the demand for the following network applications:
  Building/Home automation network Internet of
things (IoT) IP surveillance Wireless LAN    Built-in
Unique PoE Functions for Powered Devices Management
As it is the managed PoE switch for surveillance,
wireless and VoIP networks, the WGS-804HPT features
the following special PoE management functions:
PD alive check Scheduled power recycling PoE schedule
PoE usage monitoring   Intelligent Powered Device
Alive Check The WGS-804HPT can be configured to
monitor connected PD (Powered Device) status in
real time via ping action.
Once the PD stops working and responding, the
WGS-804HPT will resume the PoE port power and
bring the PD back to work.
It will greatly enhance the network reliability
through the PoE port resetting the PD’s power
source and reducing administrator management burden.
   Scheduled Power Recycling The WGS-804HPT allows
each of the connected PoE IP cameras or PoE wireless
access points to reboot at a specific time each week.
Therefore, it will reduce the chance of IP camera
or AP crash resulting from buffer overflow.
     PoE Schedule for Energy Saving Under the
trend of energy saving worldwide and contributing
to environmental protection,
the WGS-804HPT can effectively control the power
supply besides its capability of giving high watts power.
The “PoE schedule” function helps you to enable
or disable PoE power feeding for each PoE port
during specified time intervals and it is a powerful
function to help SMBs or enterprises save power and budget.
It also increases security by powering off PDs
that should not be in use during non-business hours.
  PoE Usage Monitoring and Intelligent LED Indicator
for Real-time PoE Usage Via the power usage chart
in the web management interface,
the WGS-804HPT enables the administrator to monitor
the status of the power usage of the connected
PDs in real time.
Thus, it greatly enhances the management efficiency
of the facilities.
Moreover, the WGS-804HPT helps users to monitor
the current status of PoE power usage easily and
efficiently via its advanced LED indication.
Called “PoE Power Usage”, the front panel of the
WGS-804HP has four LED indicators of different power usages.
   Innovative Wall-mount Installation The WGS-804HPT
is specially designed to be installed in a narrow environment,
such as wall enclosure or electric weak box. The compact,
flat and wall-mounted design fits easily in any
space-limited location.
It adopts the user-friendly “Front Access” design,
making the installing, cable wiring, LED monitoring
and maintenance of the WGS-804HPT placed in an
enclosure very convenient for technicians.
The WGS-804HPT can be installed by fixed wall mounting,
magnetic wall mounting or DIN rail, thereby making
its usability more flexible.
   Environmentally Hardened Design With IP30,
flat but rugged metal housing protection,
the WGS-804HPT provides a high level of immunity
against electromagnetic interference and heavy
electrical surges which are usually found on plant
floors or in curb-side traffic control cabinets
without air conditioner.
Being able to operate under the temperature range
from -40 to 75 degrees C,
the WGS-804HPT can be placed in almost any difficult environment.
  IPv6/IPv4 Dual Stack Management Supporting both
IPv6 and IPv4 protocols,
the WGS-804HPT helps the SMBs to step in the IPv6
era with the lowest investment as its network
facilities need not be replaced or overhauled
if the IPv6 FTTx edge network is set up.
  Robust Layer 2 Featurs The WGS-804HPT can be
programmed for advanced switch management functions
such as dynamic port link aggregation,
802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree
Protocol (MSTP),
Loop and BPDU Guard, IGMP Snooping, and MLD Snooping.
Via the link aggregation, the WGS-804HPT allows
the operation of a high-speed trunk to combine
with multiple ports such as a 16Gbps fat pipe,
and supports fail-over as well. Also, the Link
Layer Discovery Protocol (LLDP) is the Layer 2
protocol included to help discover basic information
about neighboring devices on the local broadcast domain.
   Efficient Traffic Control The WGS-804HPT is
loaded with robust QoS features and powerful traffic
management to enhance services to business-class data,
voice, and video solutions. The functionality
includes broadcast/multicast/unicast storm control,
per port bandwidth control, 802.1p/CoS/IP DSCP
QoS priority and remarking.
It guarantees the best performance in VoIP and
video stream transmission,
and empowers the enterprises to take full advantage
of the limited network resources.
  Friendly and Secure Management For efficient management,
the WGS-804HPT is equipped with web, Telnet and
SNMP management interfaces.
With the built-in web-based management interface,
the WGS-804HPT offers an easy-to-use, platform-independent
management and configuration facility.
By supporting the standard SNMP, the switch can
be managed via any standard management software.
For text-based management, the switch can be accessed via Telnet.
Moreover, the WGS-804HPT offers secure remote
management by supporting SSH,
SSL and SNMP v3 connections which encrypt the
packet content at each session.
  Advanced Network Security PLANET WGS-804HPT
offers a comprehensive IPv4/IPv6 Layer 2 to Layer
4 Access Control List (ACL) for enforcing security to the edge.
Its protection mechanism also comprises 802.1X
port-based user and device authentication,
which can be deployed with RADIUS to ensure the
port level security and block illegal users.
With the protected port function, communication
between edge ports can be prevented to guarantee user privacy.
Furthermore, the WGS-804HPT also provides DHCP snooping,
IP source guard and dynamic ARP inspection functions
to prevent IP snooping from attack and discarded
ARP packets with invalid MAC address.
The network administrators can now construct highly-secure
corporate networks with considerably less time
and effort than before.
  Ready to Go with IoT Generation Internet is
very popular the world over as users surf online
daily with their mobile devices,
such as smart phones, tablets, or laptop computers.
However, users expect more from the convenience of Internet,
like how to use their mobile devices to control
something via the Internet,
thus making life more convenient. The WGS-804HPT
is based on such concept to help users implement
the Internet of things (IoT) on the SOHO/Home network.
Home automation is no longer a dream as Gigabit
network can easily cloud IoT equipment,
making it a smart home.

Technische Details:
