Produktbeschreibung:

8-port 10/100/1000BASE-T Gigabit Ethernet RJ45
with IEEE 802.3af PoE injector 2 100/1000BASE-X
mini-GBIC/SFP slots for SFP type auto detection
One RJ45 console interface for basic management
and setup   Power over Ethernet Complies with
IEEE 802.3af Power over Ethernet/end-span PSE
Up to 8 IEEE 802.3af devices powered Supports
PoE power up to 15.4 watts for each PoE port Auto
detects powered device (PD) Circuit protection
prevents power interference between ports Remote
power feeding up to 100m PoE management features
- Total PoE power budget control - Per port PoE
function enable/disable - PoE admin-mode control
- PoE port power feeding priority - Per PoE port
power limit - PD classification detection - Temperature
threshold control - PoE usage threshold control
- PD alive check - PoE schedule   Industrial Case
& Installation IP30 aluminum case protection DIN
rail and wall-mount design 48V DC,
redundant power with polarity reverse protect
function Supports EFT protection of 6000V DC for
power line Supports 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature   Digital
Input & Digital Output 2 Digital Input (DI) 2
Digital Output (DO) Integrate sensors into auto
alarm system Transfer alarm to IP network via
email and SNMP trap   Layer 2 Features Prevents
packet loss with back pressure (half-duplex) and
IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture
and runt/CRC filtering eliminates erroneous packets
to optimize the network bandwidth Storm Control
support - Broadcast/Multicast/Unicast Supports
VLAN - IEEE 802.1Q tagged VLAN - Up to 255 VLANs groups,
out of 4094 VLAN IDs - Provider Bridging (VLAN
Q-in-Q) support (IEEE 802.1ad) - Private VLAN
Edge (PVE) - Protocol-based VLAN - MAC-based VLAN
- Voice VLAN Supports Spanning Tree Protocol -
IEEE 802.1D Spanning Tree Protocol (STP) - IEEE
802.1w Rapid Spanning Tree Protocol (RSTP) - IEEE
802.1s Multiple Spanning Tree Protocol (MSTP),
spanning tree by VLAN - BPDU Guard Supports Link
Aggregation - 802.3ad Link Aggregation Control
Protocol (LACP) - Cisco ether-channel (static
trunk) - Maximum 5 trunk groups,
up to 8 ports per trunk group - Up to 16Gbps bandwidth
(duplex mode) Provides port mirror (1-to-1) Port
mirroring to monitor the incoming or outgoing
traffic on a particular port Loop protection to
avoid broadcast loops Supports ERPS (Ethernet
Ring Protection Switching)   Layer 3 IP Routing
Features Supports maximum 32 software static routes
and route summarization   Quality of Service Ingress
Shaper and Egress Rate Limit per port bandwidth
control 8 priority queues on all switch ports
Traffic classification - IEEE 802.1p CoS - IP
TOS/DSCP/IP precedence - IP TCP/UDP port number
- Typical network application Strict priority
and Weighted Round Robin (WRR) CoS policies Supports
QoS and In/Out bandwidth control on each port
Traffic-policing policies on the switch port DSCP
remarking   Multicast Supports IGMP snooping v1,
v2 and v3 Supports MLD snooping v1 and v2 Querier
mode support IGMP snooping port filtering MLD
snooping port filtering MVR (Multicast VLAN Registration)
  Security IEEE 802.1x Port-based/MAC-based network
access authentication Built-in RADIUS client to
cooperate with the RADIUS servers TACACS+ login
users access authentication RADIUS/TACACS+ users
access authentication IP-based Access Control
List (ACL) MAC-based Access Control List Source
MAC/IP address binding DHCP snooping to filter
distrusted DHCP messages Dynamic ARP Inspection
discards ARP packets with invalid MAC address
to IP address binding IP Source Guard prevents
IP spoofing attacks IP address access management
to prevent unauthorized intruder   Management
Switch Management Interfaces - Console/Telnet
Command Line Interface - Web switch management
- SNMP v1 and v2c switch management - SSH/SSL
and SNMP v3 secure access Four RMON groups (history,
statistics, alarms, and events) IPv6 IP address/NTP/DNS
management Built-in Trivial File Transfer Protocol
(TFTP) client BOOTP and DHCP for IP address assignment
Firmware upload/download via HTTP/TFTP DHCP Relay
DHCP Option 82 User Privilege levels control Network
Time Protocol (NTP) Link Layer Discovery Protocol
(LLDP) SFP-DDM (Digital Diagnostic Monitor) Cable
diagnostic technology provides the mechanism to
detect and report potential cabling issues Reset
button for system reboot or reset to factory default
PLANET Smart Discovery Utility for deployment
management   Environmentally Hardened Design The
Industrial 8-Port Gigabit 802.3af PoE Switch,
IGS-10020PT is equipped with rugged IP30 metal
case for stable operation in heavy Industrial
demanding environments.
With IP30 industrial case protection, the IGS-10020PT
provides a high level of immunity against electromagnetic
interference and heavy electrical surges which
are usually found on plant floors or in curb side
traffic control cabinets.
Being able to operate in wide temperature range
from -40 to 75 degrees C,
the IGS-10020PT can be placed in almost any difficult environment.

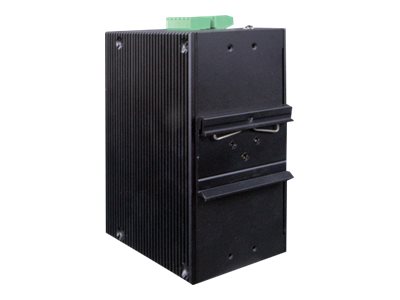

The IGS-10020PT also allows either DIN rail or
wall mounting for efficient use of cabinet space.
   Redundant Ring, Fast Recovery for Surveillance
System The IGS-10020PT supports redundant ring
technology and features strong rapid self-recovery
capability to prevent interruptions and external intrusions.
It incorporates advanced Redundant Ring technology,
Spanning Tree Protocol (802.1w RSTP), and redundant
power supply system into customer’s industrial
automation network to enhance system reliability
and uptime in harsh factory environments.
The IGS-10020PT also protects customer’s industrial
network connectivity with switching recovery capability
that is used for implementing fault tolerant ring
and mesh network architectures.
If the Industrial network was interrupted accidentally,
the fault recovery times could be less than 50ms
to quickly bring the network back to normal operation.
   Built-in Unique PoE Functions for Powered Devices
Management As a managed PoE Switch for surveillance,
wireless and VoIP network, the IGS-10020PT features
three special PoE Management functions: PD ALIVE
Check Schedule Power Recycle SMTP/SNMP Trap Event
Alert PoE Schedule   Intelligent Alive Check for
Powered Device The IGS-10020PT can be configured
to monitor connected PD (Powered Device) status
in real-time via ping action.
Once the PD stops working and responding, the
IGS-10020PT will resume the PoE port power and
bring the PD back to work.
It will greatly enhance the network reliability
through the PoE port resetting the PD’s power
source and reducing administrator management burden.
   PoE Schedule for Energy Saving Under the trend
of energy saving worldwide and contributing to
environmental protection,
the IGS-10020PT can effectively control the power
supply besides its capability of giving high watts power.
The built-in “PoE schedule” function helps you
to enable or disable PoE power feeding for each
PoE port during specified time intervals and it
is a powerful function to help SMB or Enterprise
save power and money.
   Digital Input and Digital Output for external
Alarm The IGS-10020PT supports Digital Input,
and Digital Output on its front panel. This external
alarm enables users to use Digital Input to detect,
log external device status (such as door intrusion detector),
and send event alarm to the administrators. The
Digital Output could be used to alarm the administrators
if the IGS-10020PT port is link down,
link up or power failure.   Layer 3 IPv4 and IPv6
Software VLAN Routing for Secure and Flexible
Management To help customers stay on top of their businesses,
the IGS-10020 series not only provides ultra high
transmission performance and excellent layer 2 technologies,
but also IPv4/IPv6 software VLAN routing feature
which allows to crossover different VLANs and
different IP addresses for the purpose of having
a highly secured,
flexible management and simpler networking application.
  Robust Layer 2 Features The IGS-10020PT can
be programmed for advanced switch management function,
such as dynamic port link aggregation, Q-in-Q VLAN,
private VLAN, Rapid Spanning Tree Protocol, Layer
2 to Layer 4 QoS,
bandwidth control and IGMP/MLD snooping. The IGS-10020PT
provides 802.1Q tagged VLAN and the VLAN groups
allowed will be maximally up to 255.
The IGS-10020PT not only allows the operation
of a high-speed trunk combining multiple ports,
but also supports connection fail-over.   Efficient
Management For efficient management,
the IGS-10020PT managed switch is equipped with console,
web and SNMP management interfaces. With the built-in
web-based management interface,
the IGS-10020PT offers an easy-to-use, platform
independent management and configuration facility.
The IGS-10020PT supports SNMP and it can be managed
via any based on standard of SNMP v1 and v2 management software.
For text-based management mode, the IGS-10020PT
can be accessed via Telnet and the console port.
Moreover, the IGS-10020PT offers remote secure
management by supporting SSH,
SSL and SNMPv3 connection which can encrypt the
packet content at each session.
   Powerful Security The IGS-10020PT offers comprehensive
Layer 2 to Layer 4 access control list (ACL) for
enforcing security to the edge.
It can be used to restrict to network access by
denying packets based on source and destination IP address,
TCP/UDP port number or defined typical network applications.
Its protection mechanism also comprises 802.1x
Port-based and MAC-based user and device authentication.
With the private VLAN function, communication
between edge ports can be prevented to ensure user privacy.
The IGS-10020PT also provides DHCP Snooping, IP
Source Guard and Dynamic ARP Inspection functions
to prevent IP snooping from attack and discard
ARP packets with invalid MAC address.
The network administrator can now construct highly
secured corporate networks with considerably less
time and effort than before.
  Flexibility and Extension Solution The two mini-GBIC
slots built in the IGS-10020PT supports dual speed,
100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor
Pluggable) fiber-optic modules.
Now the administrator can flexibly choose the
suitable SFP transceiver according to not only
the transmission distance,
but also the transmission speed required. The
distance can be extended from 550 meters to 2km
(multi-mode fiber) up to 10/20/30/40/50/70/120
kilometers (single-mode fiber or WDM fiber).
They are well suited for applications within the
enterprise data centers and distributions.
  Perfect Integration Solution for Outdoor IP
PoE Camera and NVR System The IGS-10020PT provides
8 10/100/1000Mbps 802.3af PoE ports and can offer
sufficient PoE power for 8 PoE IP cameras at the same time.
In addition, with the 2 100/1000BASE-X SFP interfaces,
the IGS-10020PT can connect to core fiber switch
and send video stream to NVR and monitoring center.
Through the high performance switch architecture,
the IGS-10020PT facilitates the recorded video
files from the 8 PoE IP cameras to be saved in
the NVR systems.
Furthermore, the NVR systems can be controlled
and monitored both in the local LAN and the remote
site via Internet.
The IGS-10020PT undoubtedly brings an ideal secure
surveillance system at a lower total cost.

Technische Details:
