Produktbeschreibung:

8-Port 10/100/1000BASE-T Gigabit RJ45 copper with
IEEE 802.3at PoE+ Injector function 2 100/1000BASE-X
mini-GBIC/SFP slots   Power over Ethernet Complies
with IEEE 802.3at Power over Ethernet Plus,
end-span PSE Backward compatible with IEEE 802.3af
Power over Ethernet Up to 8 ports of IEEE 802.3af/802.3at
devices powered Supports PoE power up to 36 watts
for each PoE port Auto detects powered device
(PD) Circuit protection prevents power interference
between ports Remote power feeding up to 100 meters
PoE management - Total PoE power budget control
- Per port PoE function enable/disable - PoE port
power feeding priority - Per PoE port power limitation
- PD classification detection - PD alive check
- PoE schedule   Industrial Case and Installation
Compact size with fixed wall-mounted,
magnetic wall-mounted or DIN-rail design IP30
metal case protection Supports -40 to 75 degrees
C operating temperature Supports ESD 8KV DC Ethernet
protection Dual power input design - 48V~56V DC
wide power input with polarity reverse protect
function - 3-pin terminal block or DC jack connector
  Switching Hardware based 10/100Mbps,
half/full duplex and 1000Mbps full duplex mode,
flow control and auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed
filtering and forwarding rates IEEE 802.3x flow
control for full duplex operation and back pressure
for half duplex operation 8K MAC address table
size 10K jumbo frame Automatic address learning
and address aging Supports CSMA/CD protocol
Layer 2 Features Supports VLAN - IEEE 802.1Q tagged
VLAN - Provider bridging (VLAN Q-in-Q,
IEEE 802.1ad) support - Protocol VLAN - Voice
VLAN - Private VLAN (Protected port) - Management
VLAN - GVRP Supports Spanning Tree Protocol -
STP (Spanning Tree Protocol) - RSTP (Rapid Spanning
Tree Protocol) - MSTP (Multiple Spanning Tree
Protocol) - STP BPDU Guard,
BPDU Filtering and BPDU Forwarding Supports Link
Aggregation - IEEE 802.3ad Link Aggregation Control
Protocol (LACP) - Cisco ether-channel (static
trunk) Provides port mirror (many-to-1) Loop protection
to avoid broadcast loops   Quality of Service
Ingress/Egress Rate Limit per port bandwidth control
Traffic classification - IEEE 802.1p CoS - TOS/DSCP/IP
precedence of IPv4/IPv6 packets Strict priority
and Weighted Round Robin (WRR) CoS policies
Multicast Supports IPv4 IGMP snooping v2,
v3 Supports IPv6 MLD snooping v1, v2 IGMP querier
mode support IGMP snooping port filtering MLD
snooping port filtering   Security Storm Control
support - Broadcast/Unknown unicast/Unknown multicast
Authentication - IEEE 802.1X port-based network
access authentication - Built-in RADIUS client
to cooperate with the RADIUS servers - DHCP Option
82 - RADIUS/TACACS+ authentication Access Control
List - IPv4/IPv6 IP-based ACL - IPv4/IPv6 IP-based
ACE - MAC-based ACL - MAC-based ACE MAC Security
- Static MAC - MAC filtering Port security for
source MAC address entries filtering DHCP snooping
to filter distrusted DHCP messages Dynamic ARP
inspection discards ARP packets with invalid MAC
address to IP address binding IP source guard
prevents IP spoofing attacks DoS attack prevention
SSH/SSL   Management IPv4 and IPv6 dual stack
management Switch Management Interface - IPv4/IPv6
Web switch management - Telnet Command Line Interface - SNMP v1,
v2c, v3 - SSH and SSL secure access User privilege
levels control Built-in Trivial File Transfer
Protocol (TFTP) client Static and DHCP for IP
address assignment System Maintenance - Firmware
upload/download via HTTP/TFTP - Configuration
upload/download through HTTP/TFTP - Hardware reset
button for system reboot or reset to factory default
SNTP Network Time Protocol Cable diagnostics Link
Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
SNMP trap for interface Link-up and Link-down
notification Event message logging to remote Syslog
server Four RMON groups (history,
statistics, alarms and events) PLANET Smart Discovery
Utility   Easily-deployed and Expanded Network
Designed to be installed in a wall enclosure or
simply mounted on a wall in any convenient location,

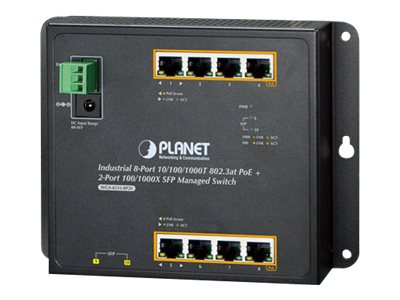

PLANET WGS-4215-8P2S, an innovative, Industrial
8-port 10/100/1000T 802.3at PoE + 2-port 100/1000X
SFP Wall-mounted Managed Switch,
offers IPv6/IPv4 dual stack management, intelligent
Layer 2 management functions,
and user-friendly interface. The WGS-4215-8P2S
is able to operate reliably,
stably and quietly in any environment without
affecting its performance.
With a total power budget of up to 200 watts for
different kinds of PoE applications and featuring
ultra networking speed and operating temperature
ranging from -40 to 75 degrees C in a compact
but rugged IP30 metal housing,
the WGS-4215-8P2S is an ideal solution to meeting
the demand for the following network applications:
?? Building/Home automation network ?? Internet
of things (IoT) ?? IP surveillance ?? Wireless
LAN     Built-in Unique PoE Functions for Powered
Devices Management As it is the managed PoE switch
for surveillance,
wireless and VoIP networks, the WGS-4215-8P2S
features the following special PoE management
functions: ?? PD alive check ?? Scheduled power
recycling ?? PoE schedule ?? PoE usage monitoring
  Intelligent Powered Device Alive Check The WGS-4215-8P2S
can be configured to monitor connected PD (Powered
Device) status in real time via ping action.
Once the PD stops working and responding, the
WGS-4215-8P2S will resume the PoE port power and
bring the PD back to work.
It will greatly enhance the network reliability
through the PoE port resetting the PD’s power
source and reducing administrator management burden.
    Scheduled Power Recycling The WGS-4215-8P2S
allows each of the connected PoE IP cameras or
PoE wireless access points to reboot at a specific
time each week.
Therefore, it will reduce the chance of IP camera
or AP crash resulting from buffer overflow.
   PoE Schedule for Energy Saving Under the trend
of energy saving worldwide and contributing to
environmental protection,
the WGS-4215-8P2S can effectively control the
power supply besides its capability of giving
high watts power.
The “PoE schedule” function helps you to enable
or disable PoE power feeding for each PoE port
during specified time intervals and it is a powerful
function to help SMBs or enterprises save power and budget.
It also increases security by powering off PDs
that should not be in use during non-business hours.
   Innovative Wall-mount Installation The WGS-4215-8P2S
is specially designed to be installed in a narrow environment,
such as wall enclosure or electric weak box. The compact,
flat and wall-mounted design fits easily in any
space-limited location.
It adopts the user-friendly “Front Access” design,
making the installing, cable wiring, LED monitoring
and maintenance of the WGS-4215-8P2S placed in
an enclosure very convenient for technicians.
The WGS-4215-8P2S can be installed by fixed wall mounting,
magnetic wall mounting or DIN rail, thereby making
its usability more flexible.
   Environmentally Hardened Design With IP30,
flat but rugged metal housing protection,
the WGS-4215-8P2S provides a high level of immunity
against electromagnetic interference and heavy
electrical surges which are usually found on plant
floors or in curb-side traffic control cabinets
without air conditioner.
Being able to operate under the temperature range
from -40 to 75 degrees C,
the WGS-4215-8P2S can be placed in almost any
difficult environment.
  IPv6/IPv4 Dual Stack Management Supporting both
IPv6 and IPv4 protocols,
the WGS-4215-8P2S helps the SMBs to step in the
IPv6 era with the lowest investment as its network
facilities need not be replaced or overhauled
if the IPv6 FTTx edge network is set up.
  Robust Layer 2 Features The WGS-4215-8P2S can
be programmed for advanced switch management functions
such as dynamic port link aggregation,
802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree
Protocol (MSTP),
Loop and BPDU Guard, IGMP Snooping, and MLD Snooping.
Via the link aggregation, the WGS-4215-8P2S allows
the operation of a high-speed trunk to combine
with multiple ports such as a 16Gbps fat pipe,
and supports fail-over as well. Also, the Link
Layer Discovery Protocol (LLDP) is the Layer 2
protocol included to help discover basic information
about neighboring devices on the local broadcast domain.
   Efficient Traffic Control The WGS-4215-8P2S
is loaded with robust QoS features and powerful
traffic management to enhance services to business-class data,
voice, and video solutions. The functionality
includes broadcast/multicast/unicast storm control,
per port bandwidth control, 802.1p/CoS/IP DSCP
QoS priority and remarking.
It guarantees the best performance in VoIP and
video stream transmission,
and empowers the enterprises to take full advantage
of the limited network resources.
  Friendly and Secure Management For efficient management,
the WGS-4215-8P2S is equipped with web, Telnet
and SNMP management interfaces.
With the built-in web-based management interface,
the WGS-4215-8P2S offers an easy-to-use, platform-independent
management and configuration facility.
By supporting the standard SNMP, the switch can
be managed via any standard management software.
For text-based management, the switch can be accessed via Telnet.
Moreover, the WGS-4215-8P2S offers secure remote
management by supporting SSH,
SSL and SNMP v3 connections which encrypt the
packet content at each session.
  Advanced Network Security PLANET WGS-4215-8P2S
offers a comprehensive IPv4/IPv6 Layer 2 to Layer
4 Access Control List (ACL) for enforcing security to the edge.
Its protection mechanism also comprises 802.1X
port-based user and device authentication,
which can be deployed with RADIUS to ensure the
port level security and block illegal users.
With the protected port function, communication
between edge ports can be prevented to guarantee user privacy.
Furthermore, the WGS-4215-8P2S also provides DHCP snooping,
IP source guard and dynamic ARP inspection functions
to prevent IP snooping from attack and discarded
ARP packets with invalid MAC address.
The network administrators can now construct highly-secure
corporate networks with considerably less time
and effort than before.
   Flexibility and Long-distance Extension Solution
The two mini-GBIC slots built in the WGS-4215-8P2S
support SFP auto-detection and dual speed as it
features 100BASE-FX and 1000BASE-SX/LX SFP (Small
Form-factor Pluggable) fiber transceivers to uplink
to backbone switch and monitoring center in long distance.
The distance can be extended from 550 meters to
2 kilometers (multi-mode fiber) and up to 10/20/30/40/50/60/70/120
kilometers (single-mode fiber or WDM fiber).
They are well suited for applications within the
enterprise data centers and distributions.
  Intelligent SFP Diagnosis Mechanism The WGS-4215-8P2S
supports SFP-DDM (Digital Diagnostic Monitor)
function that can easily monitor real-time parameters
of the SFP for network administrator,
such as optical output power, optical input power,
temperature, laser bias current and transceiver
supply voltage.

Technische Details:
