Planet Switch unmanaged 8 x 10/100/1000 + 2 x Gigabit SFP an DIN-Schiene montierbar AC 24 V / DC 12 48 V

Planet Switch unmanaged 8 x 10/100/1000 + 2 x Gigabit SFP an DIN-Schiene montierbar AC 24 V / DC 12 48 V

Produktbeschreibung:

8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X
function 2 SFP slots,
supporting 1000BASE-X and 100BASE-FX transceiver
type auto-detection unmanaged     Industrial Case
and Installation IP30 metal case protection DIN
rail and wall mount design Redundant Power Design
- 12 to 48V DC,
redundant power with polarity reverse protect
function - AC 24V power adapter acceptable Supports
6000V DC Ethernet ESD protection -40 to 75 degrees
C operating temperature Supports Energy-Efficient
Ethernet (EEE) function (IEEE 802.3az)   Industrial-grade,

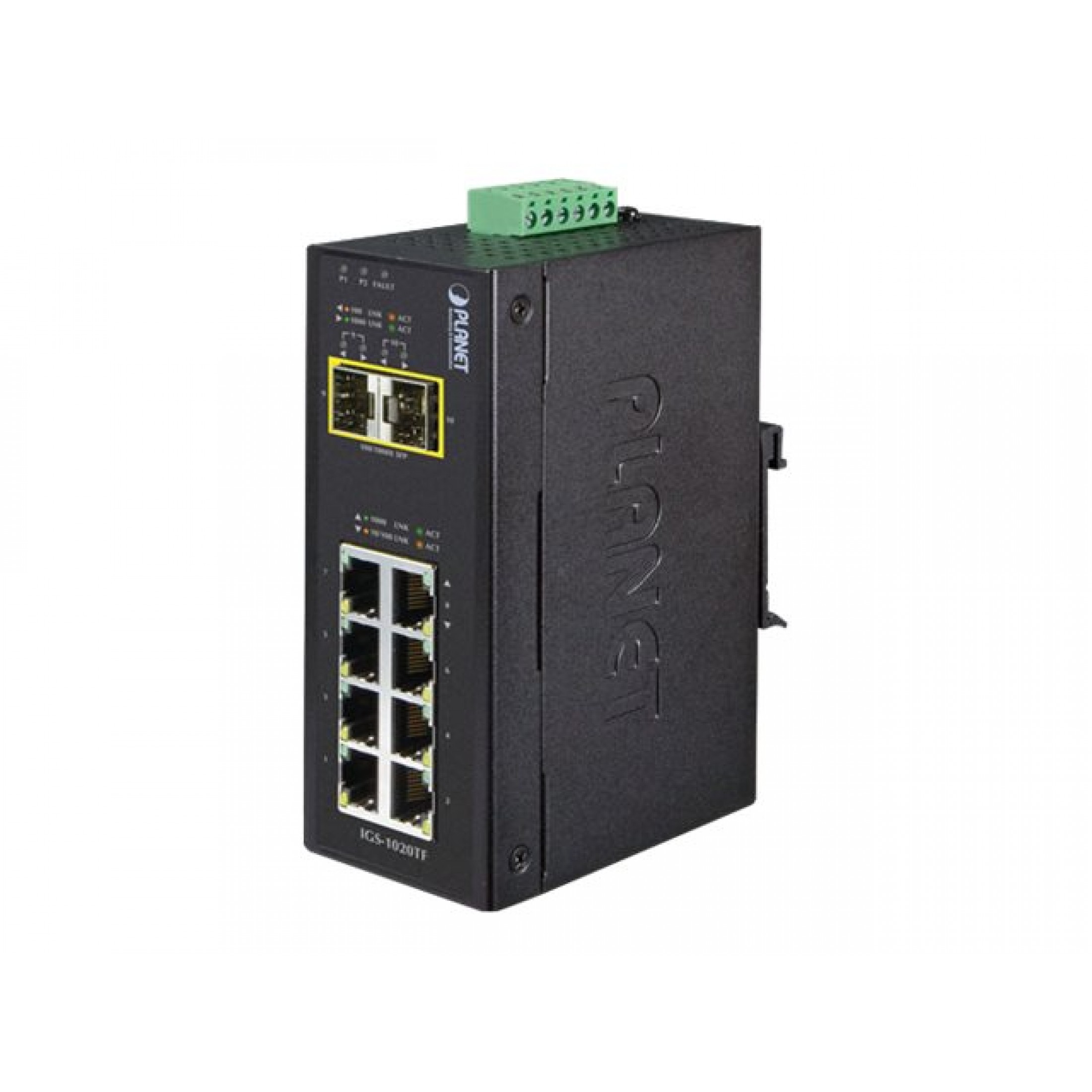

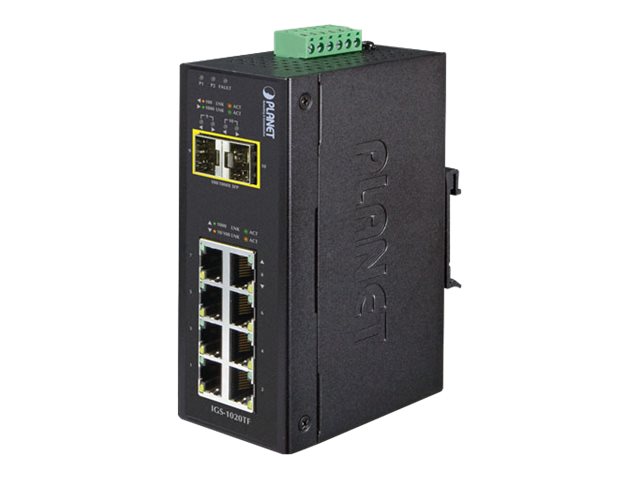

Reliable and Flexible Network Deployment PLANET
IGS-1020TF is an industrial 10-port full Gigabit
Ethernet Switch providing non-blocking wire-speed
performance and great flexibility for Gigabit
Ethernet deployment and extension in harsh environment.
It provides 8-port 10/100/1000BASE-T RJ45 copper
and 2 extra 100/1000BASE-X SFP fiber optic interfaces
delivered in an IP30 rugged strong case with redundant power system.
The IGS-1020TF is well suited for applications
in deploying surveillance system,
secure control and wireless service in climatically
demanding environments with wide temperature range
from -40 to 75 degrees C.
  Fiber-Optic Link Capability Enables Extension
of Network Deployment The two mini-GBIC slots
built in the IGS-1020TF support SFP auto-detection
and dual speed as it features 100BASE-FX and 1000BASE-SX/LX
SFP (Small Form-factor Pluggable) fiber-optic modules,
meaning the administrator now can flexibly choose
the suitable SFP transceiver according to the
transmission distance or the transmission speed
required to extend the network efficiently.
The distance can be extended from 550 meters to
2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120
kilometers (single-mode fiber or WDM fiber).
They are well suited for applications to uplink
to backbone switch and monitoring center in long distance.
  Environmentally Hardened Design With IP30 rugged
metal case protection,
the IGS-1020TF provides a high level of immunity
against electromagnetic interference and heavy
electrical surges which are usually found on plant
floors or in curbside traffic control cabinets.
Being able to operate under the temperature range
from -40 to 75 degrees C,
the IGS-1020TF can be placed in almost any difficult environment.
The IGS-1020TF also allows either DIN rail or
wall mounting for efficient use of cabinet space.
  Dual Power Input for High Availability Network
System The IGS-1020TF features a strong dual power
input system with wide-ranging voltages (12V~48V
DC or 24V AC) incorporated into customer’s automation
network to enhance system reliability and uptime.
In the example below, when power supply 1 fails to work,
the hardware failover function will be activated
automatically to keep powering the IGS-1020TF
via power supply 2 alternatively without any loss of operation.
   Energy Saving The IGS-1020TF, incorporating
advanced green networking technologies and and
IEEE 802.3az protocol based power saving,
is able to provide power saving up to 50% less
energy but maintains high performance efficiently.
? Link Down power saving The Link Down power saving
goes beyond IEEE specifications to automatically
lower power consumption for a given port when
it is not linked.
With the Link Down power saving technology, the
IGS-1020TF will automatically adjust power usage
of the ports that are shut down or not connected
to network device.
  ? Intelligent power scale based on cable length
Intelligent power scale is an intelligent algorithm
that actively determines the appropriate power
level based on cable length.
When the IGS-1020TF is connected with Ethernet
cable shorter than 20m,
a device can obtain maximum power saving because
the IGS-1020TF would automatically detect the
Ethernet cable length and diminish power usage.
The connected device can substantially reduce
the overall power consumption,
which makes a significant contribution to energy
saving   Robust Protection The IGS-1020TF provides
contact discharge of ±6KV DC and air discharge
of ±8KV DC for Ethernet ESD protection.
It also supports ±4KV surge immunity to improve
product stability and protects users’ networks
from devastating ESD attacks,
making sure the flow of operation does not fluctuate.
  Plug and Power Network Deployment All of the
RJ45 copper interfaces in the IGS-1020TF support
10/100/1000Mbps auto negotiation for optimal speed
detection through RJ45 Category 6,
5 or 5e cables. The standard auto-MDI/MDI-X support
can detect the type of connection to any Ethernet
device without requiring special straight-through
or crossover cables.
