Planet Switch verwaltet 8 x 10/100/1000 + 4 x Gigabit SFP an DIN-Schiene montierbar wandmontierbar AC 24 V / DC 12 -72 V

Planet Switch verwaltet 8 x 10/100/1000 + 4 x Gigabit SFP an DIN-Schiene montierbar wandmontierbar AC 24 V / DC 12 -72 V

Produktbeschreibung:

8-Port 10/100/1000BASE-T RJ45 copper 4 100/1000BASE-X
mini-GBIC/SFP slots,
SFP type auto detection One RJ45 console interface
for basic management and setup   Industrial Case /
Installation IP30 aluminum case protection DIN-rail
and wall-mount design Redundant Power Design - 12 to 72V DC,
redundant power with polarity reverse protect
function - AC 24V power adapter acceptable Supports
EFT protection for 6000V DC power and 6000V DC
Ethernet ESD protection -40 to 75 degrees C operating
temperature   Digital Input /
Digital Output 2 Digital Input (DI) 2 Digital
Output (DO) Integrates sensors into auto alarm
system Transfers alarm to IP network via email
and SNMP trap   Layer 2 Features High performance
of Store-and-Forward architecture and runt/CRC
filtering eliminates erroneous packets to optimize
the network bandwidth Storm Control support - Broadcast /
Multicast / Unknown Unicast Supports VLAN - IEEE
802.1Q tagged VLAN - Up to 255 VLANs groups,
out of 4095 VLAN IDs - Provider Bridging (VLAN
Q-in-Q) support (IEEE 802.1ad) - Private VLAN
Edge (PVE) - Protocol-based VLAN - MAC-based VLAN
- Voice VLAN Supports Spanning Tree Protocol - STP,
IEEE 802.1D Spanning Tree Protocol - RSTP, IEEE
802.1w Rapid Spanning Tree Protocol - MSTP,
IEEE 802.1s Multiple Spanning Tree Protocol by
VLAN - BPDU Guard Supports Link Aggregation -
802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk) - Maximum
6 trunk groups,
up to 8 ports per trunk group - Up to 16Gbps bandwidth
(duplex mode) Provides port mirror (many-to-1)
Port Mirroring of the incoming or outgoing traffic
on a particular port Loop protection to avoid
broadcast loops Supports E.R.P.S.
(Ethernet Ring Protection Switching) IEEE 1588
and Synchronous Ethernet network timing   Quality
of Service Ingress Shaper and Egress Rate Limit
per port bandwidth control 8 priority queues on
all switch ports Traffic classification - IEEE
802.1p CoS - IP TOS /
DSCP / IP Precedence - IP TCP/UDP port number
- Typical network application Strict priority
and Weighted Round Robin (WRR) CoS policies Supports
QoS and In/Out bandwidth control on each port
Traffic-policing policies on the switch port DSCP
remarking   Multicast Supports IPv4 IGMP Snooping v1,
v2 and v3 Supports IPv6 MLD Snooping v1 and v2
Querier mode support IGMP Snooping port filtering
MLD Snooping port filtering MVR (Multicast VLAN
Registration)   Security Authentication - IEEE
802.1x Port-based /
MAC-based network access authentication - Built-in
RADIUS client to cooperate with the RADIUS servers
- TACACS+ login users access authentication - RADIUS /
TACACS+ users access authentication Access Control
List - IP-based Access Control List (ACL) - MAC-based
Access Control List Source MAC /
IP address binding DHCP Snooping to filter un-trusted
DHCP messages Dynamic ARP Inspection discards
ARP packets with invalid MAC address to IP address
binding IP Source Guard prevents IP spoofing attacks
Auto DoS rule to defend DoS attack IP address
access management to prevent unauthorized intruder
  Layer 3 IP Routing Features Supports maximum
32 static routes and route summarization   Management
IPv4 and IPv6 dual stack management Switch Management
Interfaces - Console /
Telnet Command Line Interface - Web switch management - SNMP v1,
v2c, and v3 switch management - SSH / SSL secure
access IPv6 IP Address /
NTP / DNS management Built-in Trivial File Transfer
Protocol (TFTP) client BOOTP and DHCP for IP address
assignment System Maintenance - Firmware upload/download via HTTP /
TFTP - Reset button for system reboot or reset
to factory default - Dual Images DHCP Relay and
DHCP Option82 User Privilege levels control NTP
(Network Time Protocol) Link Layer Discovery Protocol
(LLDP) and LLDP-MED SFP-DDM (Digital Diagnostic
Monitor) Network Diagnostic - ICMPv6 /
ICMPv4 Remote Ping - Cable Diagnostic technology
provides the mechanism to detect and report potential
cabling issues SMTP /
Syslog remote alarm Four RMON groups (history,
statistics, alarms and events) SNMP trap for interfacing
Link Up and Link Down notification System Log
PLANET Smart Discovery Utility for deploy management

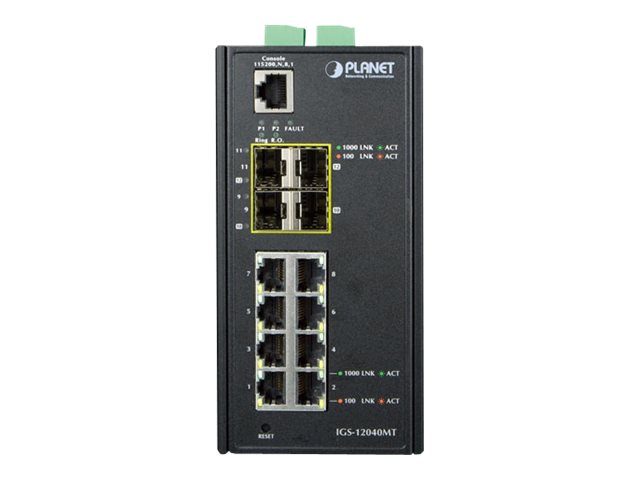

  PLANET IGS-12040MT is an Industrial 12-port
Full Gigabit Managed Ethernet Switch specially
designed to build a full Gigabit backbone to transmit
reliable and high speed data in heavy industrial
demanding environments and forward data to remote
network through fiber optic.
It provides 8-port 10/100/1000BASE-T copper and
4 extra 100/1000BASE-X SFP fiber optic interfaces
delivered in an IP30 rugged strong case with redundant power system.
Besides support for 24Gbps switch fabric to handle
extremely large amounts of video,
voice and important data in a secure topology,
the IGS-12040MT provides user-friendly but advanced IPv6 /
IPv4 management interfaces and abundant L2 / L4
switching functions.
It is the best investment for industrial business
expanding or upgrading its network infrastructure.
   Environmentally Hardened Design With IP30 aluminum
industrial case protection,
the IGS-12040MT provides a high level of immunity
against electromagnetic interference and heavy
electrical surges which are usually found on plant
floors or in curb side traffic control cabinets.
It also possesses an integrated power supply source
with wide range of voltages (12 to 72V DC or 24V
AC) for worldwide high availability applications
requiring dual or backup power inputs.
Being able to operate under the temperature range
from -40 to 75 degrees C,
the IGS-12040MT can be placed in almost any difficult environment.
  Redundant Ring, Fast Recovery for Critical Network
Applications The IGS-12040MT supports redundant
ring technology and features strong,
rapid self-recovery capability to prevent interruptions
and external intrusions.
It incorporates advanced ITU-T G.8032 ERPS (Ethernet
Ring Protection Switching) technology,
Spanning Tree Protocol (802.1s MSTP), and redundant
power input system into customer’s industrial
automation network to enhance system reliability
and uptime in harsh factory environments.
In certain simple Ring network, the recovery time
of data link can be as fast as 20ms.

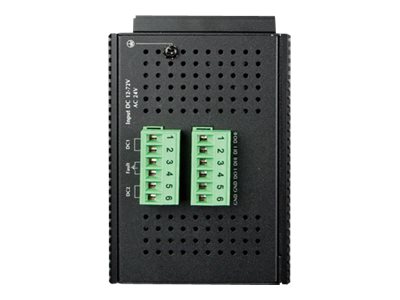

   Digital Input and Digital Output for External
Alarm The IGS-12040MT supports Digital Input and
Digital Output on its upper panel.
The external alarm enables users to use Digital
Input to detect external device’s status (such
as door intrusion detector),
and send event alarm to the administrators. The
Digital Output could be used to alarm the administrators
if the IGS-12040MT port is link-down,
link-up or power-dead.    Robust Layer2 Features
The IGS-12040MT can be programmed for advanced
switch management function,
such as dynamic port link aggregation, Q-in-Q VLAN,
Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS,
bandwidth control and IGMP/MLD snooping. The IGS-12040MT
allows the operation of a high-speed trunk combining
multiple ports.
It enables a maximum of up to 6 groups of 8 ports
for trunking and supports connection fail-over as well.
  IPv6 / IPv4 Full-functioned Secure Switch for
Building Automation Networking The IGS-12040MT
is the ideal solution to fulfilling the demand
of IPv6 management Gigabit Ethernet Switch,
especially in the Industrial hardened environment.
It supports both IPv4 and IPv6 protocols, advanced
Layer 2 to Layer 4 data switching and redundancy,
QoS traffic control, network access control and
authentication,
and Secure Management features to protect customer’s
industrial and building automation network connectivity
with reliable switching recovery capability that
is suitable for implementing fault tolerant and
mesh network architectures.
  IPv4 and IPv6 VLAN Routing for Secure and Flexible
Management The IGS-12040MT offers IPv4/IPv6 VLAN
routing feature which allows to cross over different
VLANs and different IP addresses for the purpose
of having a highly-secured,
flexible management and simpler networking application.
   User-friendly Secure Management For efficient management,
the IGS-12040MT is equipped with console, Web
and SNMP management interfaces.
With the built-in web-based management interface,
the IGS-12040MT offers an easy-to-use, platform
independent management and configuration facility.
The IGS-12040MT supports SNMP and it can be managed
via any management software based on standard
of SNMP v1 and v2 protocol.
For reducing product learning time, the IGS-12040MT
offers Cisco-like command via Telnet or console
port and customer doesn’t need to learn new command
from these switches.
Moreover, the IGS-12040MT offers remote secure
management by supporting SSH,
SSL and SNMP v3 connection which can encrypt the
packet content at each session.
   Flexible and Extendable Solution The 4 mini-GBIC
slots built in the IGS-12040MT support dual-speed
as it features 100BASE-FX and 1000BASE-SX/LX SFP
(Small Form-factor Pluggable) fiber-optic modules,
meaning the administrator now can flexibly choose
the suitable SFP transceiver according to the
transmission distance or the transmission speed
required to extend the network efficiently.
   Intelligent SFP Diagnosis Mechanism The IGS-12040MT
supports SFP-DDM (Digital Diagnostic Monitor)
function that can easily monitor real-time parameters
of the SFP for network administrator,
such as optical output power, optical input power,
temperature, laser bias current, and transceiver
supply voltage.
   1588 Time Protocol for Industrial Computing
Networks The IGS-12040MT is intended for telecom
and Carrier Ethernet applications,
supporting MEF service delivery and timing over
packet solutions for IEEE 1588 and synchronous Ethernet.
