Produktbeschreibung:

20-port 10/100/1000BASE-T Gigabit RJ45 copper
with 16-port IEEE 802.3at/af PoE injector 4 100/1000BASE-X
mini-GBIC/SFP slots,
shared with port-17 to port-20 compatible with
100BASE-FX SFP RJ45 console interface for switch
basic management and setup Complies with IEEE
802.3at Power over Ethernet Plus,
end-span PSE Backward compatible with IEEE 802.3af
Power over Ethernet Up to 16 ports of IEEE 802.3af/802.3at
devices powered Supports PoE power up to 30.8
watts for each PoE port Auto detects powered device
(PD) Circuit protection prevents power interference
between ports Remote power feeding up to 100 meters
PoE management - Total PoE power budget control
- Per port PoE function enable/disable - PoE Port
power feeding priority - Per PoE port power limitation
- PD classification detection - PD alive-check
- PoE schedule Prevents packet loss with back
pressure (half-duplex) and IEEE 802.3x pause frame
flow control (full-duplex) High performance Store
and Forward architecture,
broadcast storm control, runt/CRC filtering eliminates
erroneous packets to optimize the network bandwidth
Supports VLAN - IEEE 802.1Q tagged VLAN - Provider
Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Protocol VLAN - Voice VLAN - Private VLAN -
Management VLAN - GVRP Supports Spanning Tree
Protocol - STP (Spanning Tree Protocol) - RSTP
(Rapid Spanning Tree Protocol) - MSTP (Multiple
Spanning Tree Protocol) - STP BPDU Guard,
BPDU filtering and BPDU forwarding Supports Link
Aggregation - EEE 802.3ad Link Aggregation Control
Protocol (LACP) - Cisco ether-channel (static
trunk) - Maximum 4 trunk groups,
up to 8 ports per trunk group Provides port mirror
(many-to-1) Loop protection to avoid broadcast
loops Ingress and egress rate limit per port bandwidth
control Storm control support - Broadcast/Unknown
unicast/Unknown multicast Traffic classification
- IEEE 802.1p CoS - TOS/DSCP/IP precedence of
IPv4/IPv6 packets Strict priority and Weighted
Round Robin (WRR) CoS policies Supports IPv4 IGMP
snooping v2 and v3 Supports IPv6 MLD snooping
v1 and v2 IGMP querier mode support IGMP snooping
port filtering MLD snooping port filtering Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the
RADIUS servers - RADIUS/TACACS+ login user access
authentication Access control list - IPv4/IPv6
IP-based ACL - MAC-based ACL MAC security - Static
MAC - MAC filtering Port security for source MAC
address entries filtering DHCP snooping to filter
distrusted DHCP messages Dynamic ARP Inspection
discards ARP packets with invalid MAC address
to IP address binding IP source guard prevents
IP spoofing attacks DoS attack prevention SSH/SSL
IPv4 and IPv6 dual stack management Switch management
interface - Web switch management - Telnet command
line interface - SNMP v1,
v2c and v3 - SSH and SSL secure access User privilege
levels control Built-in Trivial File Transfer
Protocol (TFTP) client BOOTP and DHCP for IP address
assignment System maintenance - Firmware upload/download via HTTP /
TFTP - Configuration upload / download through
web interface - Dual images - Hardware reset button
for system reboot or reset to factory default
SNTP Network Time Protocol Cable diagnostics Link
Layer Discovery Protocol (LLDP) and LLDP-MED SNMP
trap for interface link up and link down notification
Event message logging to remote Syslog server
Four RMON groups (history,
statistics, alarms and events) PLANET smart discovery
utility Smart fan with speed control    A Perfect
PoE+ Managed Switch with Advanced L2/L4 Switching

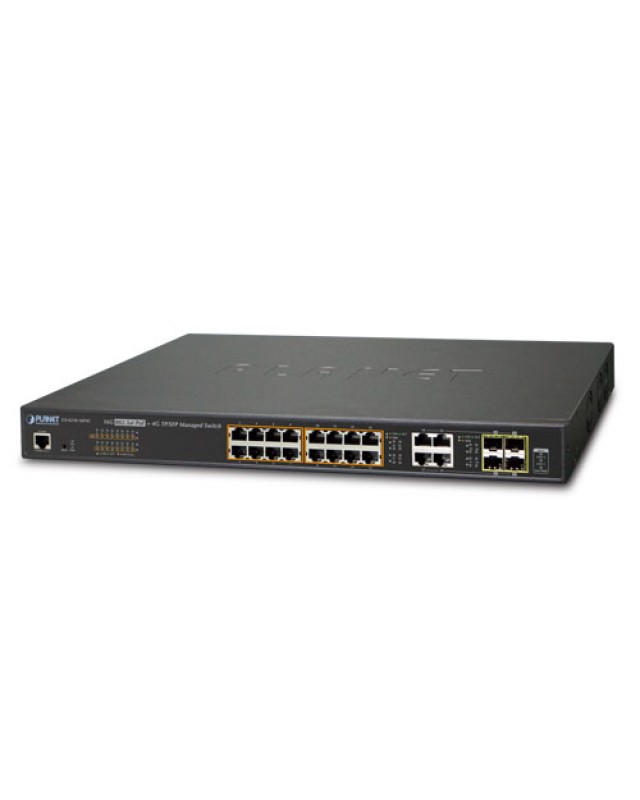

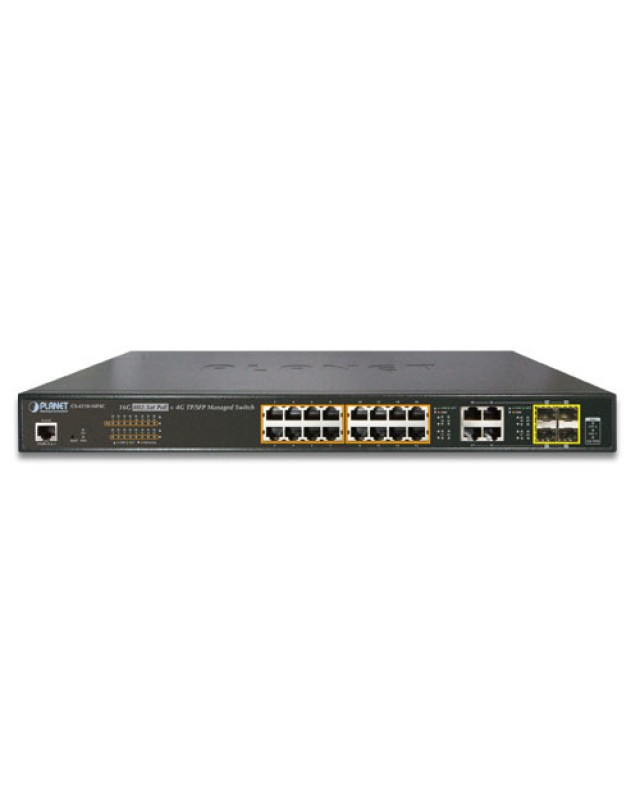

and Security The GS-4210-16P4C is a new generation
of PLANET Gigabit PoE+ Managed Switch series featuring
PLANET intelligent PoE functions to improve the
availability of critical business applications.
It provides IPv6/IPv4 dual stack management and
built-in L2/L4 Gigabit switching engine along
with 16 10/100/1000BASE-T ports featuring 30-watt
802.3at PoE+ and 4 additional Gigabit TP/SFP combo ports.
With a total power budget of up to 220 watts for
different kinds of PoE applications,
the GS-4210-16P4C provides a quick, safe and cost-effective
Power over Ethernet network solution for small
businesses and enterprises.
   Built-in Unique PoE Functions for Powered Devices
Management As the PoE managed switch for surveillance,
wireless and VoIP networks, the GS-4210-16P4C
features special PoE management functions: PD
alive check Scheduled power recycling PoE schedule
PoE usage monitoring   Intelligent Powered Device
Alive-Check The GS-4210-16P4C can be configured
to monitor connected PD (Powered Device) status
in real time via ping action.
Once the PD stops working and responding, the
GS-4210-16P4C will resume the PoE port power and
bring the PD back to work.
It will greatly enhance the network reliability
through the PoE port resetting the PD’s power
source and reducing administrator management burden.
   Scheduled Power Recycling The GS-4210-16P4C
allows each of the connected PoE IP cameras or
PoE wireless access points to reboot at a specific
time each week.
Therefore, it will reduce the chance of IP camera
or AP crash resulting from buffer overflow.
   PoE Schedule for Energy Saving Under the trend
of energy saving worldwide and contributing to
environmental protection,
the GS-4210-16P4C can effectively control the
power supply besides its capability of giving
high watts power.
The “PoE schedule” function helps you to enable
or disable PoE power feeding for each PoE port
during specified time intervals and it is a powerful
function to help SMBs or enterprises save power and money.
It also increases security by powering off PDs
that should not be in use during non-business hours.
   PoE Usage Monitoring Via the power usage chart
in the web management interface,
the GS-4210-16P4C enables the administrator to
monitor the status of the power usage of the connected
PDs in real time.
Thus, it greatly enhances the management efficiency
of the facilities.

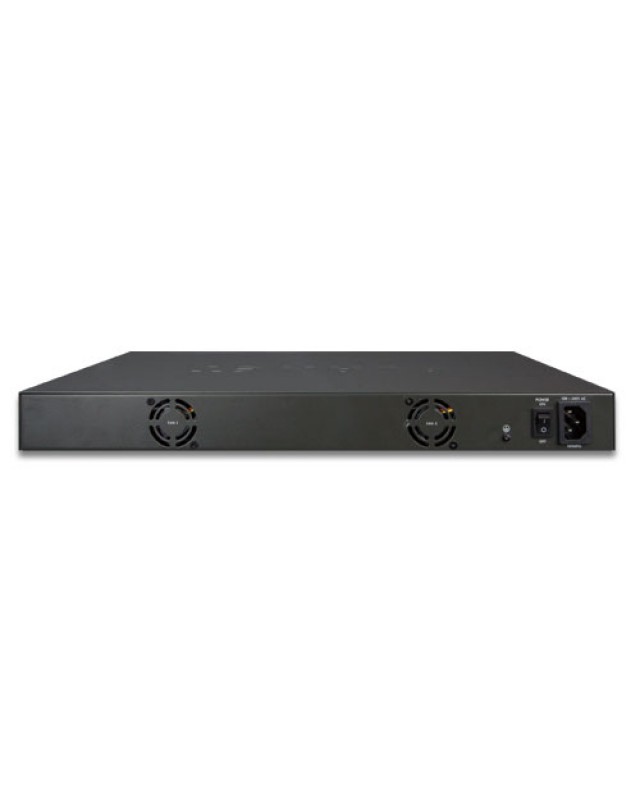

  Smart Fan Design for Silent Operation The GS-4210-16P4C
features a low noise design and an effective ventilation system.
It supports the smart fan technology that automatically
controls the speed of the built-in fan to reduce
noise and maintain the temperature of the PoE
switch for optimal power output capability.
The GS-4210-16P4C is able to operate reliably,
stably and quietly in any environment without
affecting its performance.
  IPv6/IPv4 Dual Stack Supporting both IPv6 and
IPv4 protocols,
the GS-4210-16P4C helps the SMBs to step in the
IPv6 era with the lowest investment as its network
facilities need not be replaced or overhauled
if the IPv6 FTTx edge network is set up.
  Robust Layer 2 Features The GS-4210-16P4C can
be programmed for advanced switch management functions
such as dynamic port link aggregation,
802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning
Tree protocol (MSTP),
loop and BPDU guard, IGMP snooping, and MLD snooping.
Via the link aggregation, the GS-4210-16P4C allows
the operation of a high-speed trunk to combine
with multiple ports such as a 16Gbps fat pipe,
and supports fail-over as well. Also, the Link
Layer Discovery Protocol (LLDP) is the Layer 2
protocol included to help discover basic information
about neighboring devices on the local broadcast domain.
   Efficient Traffic Control The GS-4210-16P4C
is loaded with robust QoS features and powerful
traffic management to enhance services to business-class data,
voice, and video solutions. The functionality
includes broadcast/multicast storm control,
per port bandwidth control, IP DSCP QoS priority
and remarking.
It guarantees the best performance for VoIP and
video stream transmission,
and empowers the enterprises to take full advantage
of the limited network resources.
  Powerful Security The powerful unit offers comprehensive
IPv4/IPv6 Layer 2 to Layer 4 Access Control List
(ACL) for enforcing security to the edge.
It can be used to restrict network access by denying
packets based on source and destination IP address,
TCP/UDP ports or defined typical network applications.
Its protection mechanism also comprises 802.1X
port-based user and device authentication,
which can be deployed with RADIUS to ensure the
port level security and block illegal users.
With the protected port function, communication
between edge ports can be prevented to guarantee user privacy.
Furthermore, port security function allows to
limit the number of network devices on a given port.
  Advanced Network Security The GS-4210-16P4C
also provides DHCP snooping,
IP source guard and dynamic ARP inspection functions
to prevent IP snooping from attack and discard
ARP packets with invalid MAC address.
The network administrators can now construct highly-secured
corporate networks with considerably less time
and effort than before.
   Friendly and Secure Management For efficient management,
the GS-4210-16P4C is equipped with console, web,
telnet and SNMP management interfaces. With the
built-in web-based management interface,
the GS-4210-16P4C offers an easy-to-use, platform-independent
management and configuration facility.
By supporting standard Simple Network Management
Protocol (SNMP),
the switch can be managed via any standard management software.
For text-based management, the switch can be accessed
via telnet and the console port.
Moreover, the GS-4210-16P4C offers secure remote
management by supporting SSH,
SSL and SNMPv3 connections which encrypt the packet
content at each session.
  Flexibility and Long-distance Extension Solution
The GS-4210-16P4C provides 4 extra Gigabit TP
interfaces supporting 10/100/1000BASE-T RJ45 copper
that connects with surveillance network devices such as NVR,
video streaming server or NAS to facilitate surveillance management.
Or through these dual-speed fiber SFP slots, it
can also connect with the 100BASE-FX/1000BASE-SX/LX
SFP (Small Form-factor Pluggable) fiber transceiver
to be uplinked to the backbone switch and monitoring
center in long distance.
The distance can be extended from 550 meters to
2 kilometers (multi-mode fiber) and up to 10/20/30/40/50/70/120
kilometers (single-mode fiber or WDM fiber).
They are well suited for applications within the
enterprise data centers and distributions.
  Intelligent SFP Diagnosis Mechanism The GS-4210-16P4C
supports SFP-DDM (Digital Diagnostic Monitor)
function that can easily monitor real-time parameters
of the SFP for network administrator,
such as optical output power, optical input power,
temperature, laser bias current and transceiver
supply voltage.
