Planet gemanaged L2 Gigabit Ethernet 10/100/1000 Energie Über PoE Unterstützung Schwarz Netzwerk-Switch 8 x 10/100/1000BaseT RJ-45 2 x 100/1000X SFP IP30 Aluminum

Planet gemanaged L2 Gigabit Ethernet 10/100/1000 Energie Über PoE Unterstützung Schwarz Netzwerk-Switch 8 x 10/100/1000BaseT RJ-45 2 x 100/1000X SFP IP30 Aluminum

Produktbeschreibung:

• 8-Port 10/100/1000Base-T RJ-45 copper • 2 100/1000Base-X
mini-GBIC/SFP slots,
SFP type auto detection   Industrial Case / Installation
• IP30 aluminum case protection • DIN-rail and
wall mount design • Redundant Power Design ?- 12 to 48V DC,
redundant power with polarity reverse protect
function ?- AC 24V power adapter acceptable •
Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection •
-40 to 75 degrees C operating temperature   Layer
2 Features • Prevents packet loss with back pressure
(half-duplex) and IEEE 802.3x pause frame flow
control (full-duplex) • High performance of Store-and-Forward
architecture and runt/CRC filtering eliminates
erroneous packets to optimize the network bandwidth
• Storm Control support ?- Multicast /
Unknown-Unicast • Supports VLAN ?- IEEE 802.1Q
Tagged VLAN ?- Up to 255 VLANs groups,
out of 4095 VLAN IDs ?- Provider Bridging (VLAN
Q-in-Q) support (IEEE 802.1ad) ?- Private VLAN
Edge (PVE) ?- Protocol-based VLAN ?- MAC-based
VLAN ?- Voice VLAN • Supports Spanning Tree Protocol ?- STP,
IEEE 802.1D Spanning Tree Protocol ?- RSTP, IEEE
802.1w Rapid Spanning Tree Protocol ?- MSTP,
IEEE 802.1s Multiple Spanning Tree Protocol, spanning
tree by VLAN ?- BPDU Guard • Supports Link Aggregation
?- 802.3ad Link Aggregation Control Protocol (LACP)
?- Cisco ether-channel (Static Trunk) ?- Maximum
5 trunk groups,
up to 10 ports per trunk group ?- Up to 20Gbps
bandwidth (duplex mode) • Provides Port Mirror
(many-to-1) • Port Mirroring of the incoming or
outgoing traffic on a particular port • Supports E.R.P.S.
(Ethernet Ring Protection Switching)   Quality
of Service • Ingress Shaper and Egress Rate Limit
per port bandwidth control • 8 priority queues
on all switch ports • Traffic classification ?-
IEEE 802.1p CoS ?- IP TOS /
DSCP / IP Precedence ?- IP TCP/UDP port number
?- Typical network application • Strict priority
and Weighted Round Robin (WRR) CoS policies •
Supports QoS and In/Out bandwidth control on each
port • Traffic-policing policies on the switch
port • DSCP remarking   Multicast • Supports IGMP Snooping v1,
v2 and v3 • Supports MLD Snooping v1 and v2 •
Querier mode support • IGMP Snooping port filtering
• MLD Snooping port filtering • MVR (Multicast
VLAN Registration)   Security • IEEE 802.1x Port-based /
MAC-based network access authentication • Built-in
RADIUS client to co-operate with the RADIUS servers
• TACACS+ login users access authentication • RADIUS /
TACACS+ users access authentication • IP-based
Access Control List (ACL) • MAC-based Access Control
List • Source MAC /
IP address binding • DHCP Snooping to filter untrusted
DHCP messages • Dynamic ARP Inspection discards
ARP packets with invalid MAC address to IP address
binding • IP Source Guard prevents IP spoofing
attacks • Auto DoS rule to defend DoS attack •
IP address access management to prevent unauthorized
intruder   Management • Switch Management Interfaces
?-Web switch management ?-Remote Telnet management ?-SNMP v1,
v2c, and v3 switch management ?-SSH / SSL secure
access • Four RMON groups (history,
statistics, alarms, and events) • IPv6 IP Address /
NTP / DNS management • Built-in Trivial File Transfer
Protocol (TFTP) client • BOOTP and DHCP for IP
address assignment • Firmware upload/download via HTTP /
TFTP • DHCP Relay • DHCP Option 82 • User Privilege
levels control • NTP (Network Time Protocol) •
System Log • Link Layer Discovery Protocol (LLDP)
Protocol • Cable Diagnostic technology provides
the mechanism to detect and report potential cabling
issues • Reset button for system reboot or reset
to factory default • PLANET Smart Discovery Utility

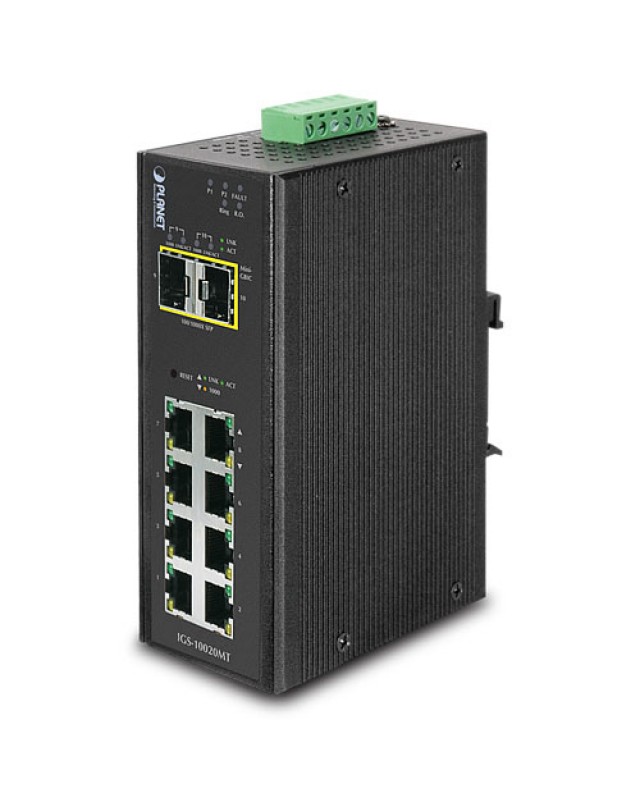

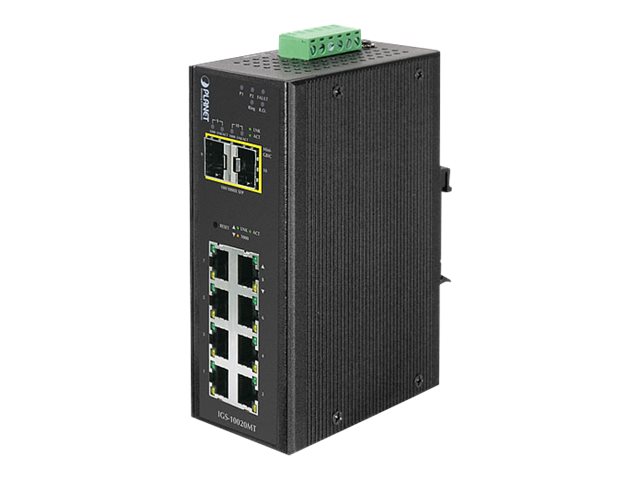

for deploy management   PLANET IGS-10020MT is
an Industrial 10-Port Full Gigabit Managed Ethernet
Switch specially designed to build a full Gigabit
backbone to transmit reliable but high speed data
in heavy industrial demanding environments and
forward data to remote network through fiber optic.
It provides 8-port 10/100/1000Base-T copper and
2 extra 100/1000Base-X SFP fiber optic interfaces
delivered in an IP30 rugged strong caiise with
redundant power system.
Besides support for 20Gbps switch fabric to handle
extremely large amounts of video,
voice and important data in a secure topology,
the IGS-10020MT provides user-friendly but advanced IPv6 /
IPv4 management interfaces and abundant L2 / L4
switching functions.
It is the best investment for industrial business
expanding or upgrading its network infrastructure    IPv6 /
IPv4 Full-functioned Secure Switch for Building
Automation Networking The IGS-10020MT is the ideal
solution to fulfilling the demand of IPv6 management
Gigabit Ethernet Switch,
especially in the Industrial hardened environment.
It supports both IPv4 and IPv6 management functions
and can work with original network structure.
It provides advanced Layer 2 to Layer 4 data switching
and redundancy,
Quality of Service traffic control, network access
control and authentication,
and Secure Management features to protect customer’s
industrial and building automation network connectivity
with reliable switching recovery capability that
is suitable for implementing fault tolerant and
mesh network architectures.
   Redundant Ring, Fast Recovery for Surveillance
System The IGS-10020MT supports redundant ring
technology and features strong rapid self-recovery
capability to prevent interruptions and external intrusions.
It incorporates advanced ITU-T G.8032 ERPS (Ethernet
Ring Protection Switching) technology,
Spanning Tree Protocol (802.1s MSTP), and redundant
power input system into customer’s industrial
automation network to enhance system reliability
and uptime in harsh factory environments.
In certain simple Ring network, the recovery time
of data link can be as fast as 20 ms.
   Environmentally Hardened Design With IP30 aluminum
industrial case protection,
the IGS-10020MT provides a high level of immunity
against electromagnetic interference and heavy
electrical surges which are usually found on plant
floors or in curb side traffic control cabinets.
It also possesses an integrated power supply source
with wide range of voltages (12 to 48V DC or 24V
AC) for worldwide high availability applications
requiring dual or backup power inputs.
Being able to operate under the temperature range
from -40 to 75 degrees C,
the IGS-10020MT can be placed in almost any difficult environment.
   Flexible and Extendable Solution The 2 mini-GBIC
slots built in the IGS-10020MT support dual-speed,
100Base-FX and 1000Base-SX/LX SFP (Small Form-factor
Pluggable) fiber-optic modules,
meaning the administrator now can flexibly choose
the suitable SFP transceiver according to the
transmission distance or the transmission speed
required to extend the network efficiently.
The IGS-10020MT supports SFP-DDM(Digital Diagnostic
Monitor) function that can easily monitor real-time
parameters of the SFP for network administrator,
such as optical output power, optical input power,
temperature, laser bias current, and transceiver
supply voltage.
