Produktbeschreibung:

8-port 10/100/1000BASE-T Gigabit RJ45 copper with
4-port IEEE 802.3at/af PoE Injector (Port-1 to
Port-4) 2x 100/1000BASE-X mini-GBIC/SFP slots,
SFP type auto detection RJ45 console interface
for switch basic management and setup   Power
over Ethernet Complies with IEEE 802.3at Power
over Ethernet Plus,
end-span PSE Backward compatible with IEEE 802.3af
Power over Ethernet Up to 4 ports of IEEE 802.3af/802.3at
devices powered Supports PoE power up to 36 watts
for each PoE port Auto detects powered device
(PD) Circuit protection prevents power interference
between ports Remote power feeding up to 100 meters
PoE management - Total PoE power budget control
- Per port PoE function enable/disable - PoE port
power feeding priority - Per PoE port power limitation
- PD classification detection - PD alive-check
- PoE schedule   Industrial Case & Installation
IP30 aluminum case DIN-rail and wall-mount design
Supports -40 to 75 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection Redundant
power design - 48V~56V DC wide power input   Switching
Hardware based 10/100Mbps (half/full duplex),
1000Mbps (full duplex), auto-negotiation and auto
MDI/MDI-X Features Store-and-Forward mode with
wire-speed filtering and forwarding rates IEEE
802.3x flow control for full duplex operation
and back pressure for half duplex operation 8K
MAC address table size 10K jumbo frame Automatic
address learning and address aging Supports CSMA/CD
protocol   Layer 2 Features Supports VLAN - IEEE
802.1Q tagged VLAN - Provider bridging (VLAN Q-in-Q,
IEEE 802.1ad) support - Protocol VLAN - Voice
VLAN - Private VLAN (Protected port) - Management
VLAN - GVRP Supports Spanning Tree Protocol -
STP (Spanning Tree Protocol) - RSTP (Rapid Spanning
Tree Protocol) - MSTP (Multiple Spanning Tree
Protocol) - STP BPDU Guard,
BPDU Filtering and BPDU Forwarding Supports Link
Aggregation - IEEE 802.3ad Link Aggregation Control
Protocol (LACP) - Cisco ether-channel (static
trunk) - Maximum 4 trunk groups,
up to 4 ports per trunk group Provides port mirror
(many-to-1) Loop protection to avoid broadcast
loops   Quality of Service Ingress/Egress Rate
Limit per port bandwidth control Traffic classification
- IEEE 802.1p CoS - TOS/DSCP/IP precedence of
IPv4/IPv6 packets Strict priority and Weighted
Round Robin (WRR) CoS policies   Multicast Supports
IPv4 IGMP snooping v2,
v3 Supports IPv6 MLD snooping v1, v2 IGMP querier
mode support IGMP snooping port filtering MLD
snooping port filtering   Security Storm Control
support - Broadcast/unknown unicast/unknown multicast
Authentication - IEEE 802.1X port-based network
access authentication - Built-in RADIUS client
to cooperate with the RADIUS servers - DHCP Option
82 - RADIUS/TACACS+ authentication Access Control
List - IPv4/IPv6 IP-based ACL - IPv4/IPv6 IP-based
ACE - MAC-based ACL - MAC-based ACE MAC Security
- Static MAC - MAC filtering Port security for
source MAC address entries filtering DHCP snooping
to filter distrusted DHCP messages Dynamic ARP
inspection discards ARP packets with invalid MAC
address to IP address binding IP source guard
prevents IP spoofing attacks DoS attack prevention
  Management IPv4 and IPv6 dual stack management
Switch Management Interface - IPv4/IPv6 Web switch
management - Console and telnet Command Line Interface - SNMP v1,
v2c, v3 - SSH and SSL secure access User privilege
levels control Built-in Trivial File Transfer
Protocol (TFTP) client Static and DHCP for IP
address assignment System Maintenance - Firmware
upload/download via HTTP/TFTP - Configuration
upload/download through HTTP/TFTP - Hardware reset
button for system reboot or reset to factory default
- Dual images SNTP Network Time Protocol Cable
diagnostics Link Layer Discovery Protocol (LLDP)
Protocol and LLDP-MED SNMP trap for interface
Link Up and Link Down notification Event message
logging to remote syslog server Four RMON groups (history,
statistics, alarms and events) PLANET Smart Discovery
Utility   Ideal,
Cost-effective, Manageable PoE Solution for Hardened
Environment Designed to be installed in heavy
industrial demanding environments,

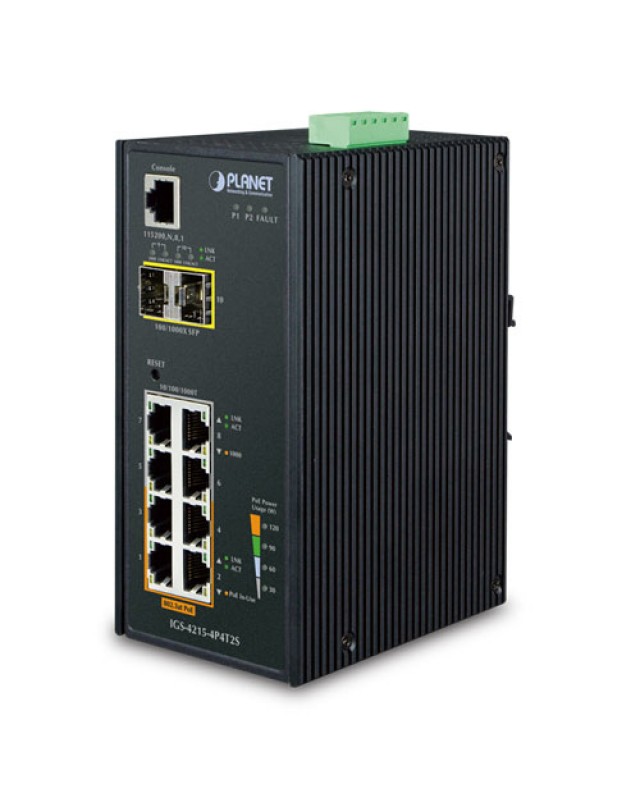

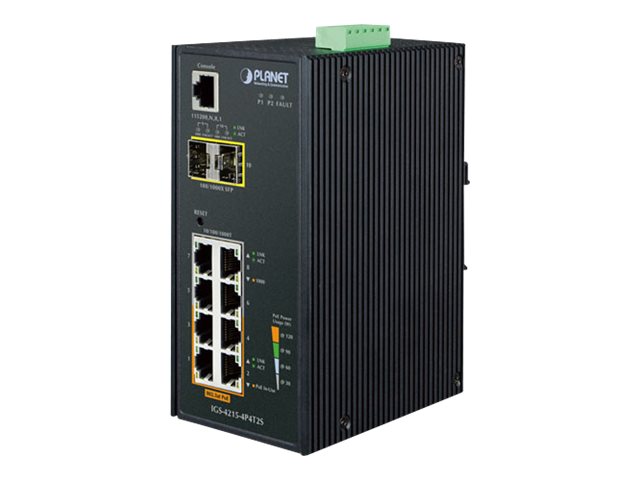

the IGS-4215-4P4T2S is the new generation of PLANET
Industrial-grade,
DIN-rail type L2/L4 Managed Gigabit PoE+ Switch
featuring PLANET intelligent PoE functions to
improve the availability of critical business applications.
It provides IPv6/IPv4 dual stack management and
built-in L2/L4 Gigabit switching engine along
with 4 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+,
4 additional Gigabit copper ports and another
2 extra 100/1000BASE-X SFP fiber slots for data
and video uplink.
The IGS-4215-4P4T2S is able to operate reliably,
stably and quietly in any environment without
affecting its performance.
It comes with a total power budget of up to 144
watts for different kinds of PoE applications
and operating temperature ranging from -40 to
75 degrees C in a rugged IP30 metal housing.
   Built-in Unique PoE Functions for Powered Devices
Management As it is the managed PoE switch for surveillance,
wireless and VoIP networks, the IGS-4215-4P4T2S
features the following special PoE management
functions: PD alive check Scheduled power recycling
PoE schedule PoE usage monitoring   Intelligent
Powered Device Alive Check The IGS-4215-4P4T2S
can be configured to monitor connected PD (Powered
Device) status in real time via ping action.
Once the PD stops working and responding, the
IGS-4215-4P4T2S will resume the PoE port power
and bring the PD back to work.
It will greatly enhance the network reliability
through the PoE port resetting the PD’s power
source and reducing administrator management burden.
   Scheduled Power Recycling The IGS-4215-4P4T2S
allows each of the connected PoE IP cameras or
PoE wireless access points to reboot at a specific
time each week.
Therefore, it will reduce the chance of IP camera
or AP crash resulting from buffer overflow.
   PoE Schedule for Energy Saving Under the trend
of energy saving worldwide and contributing to
environmental protection,
the IGS-4215-4P4T2S can effectively control the
power supply besides its capability of giving
high watts power.
The “PoE schedule” function helps you to enable
or disable PoE power feeding for each PoE port
during specified time intervals and it is a powerful
function to help SMBs or enterprises save power and budget.
It also increases security by powering off PDs
that should not be in use during non-business hours.
   PoE Usage Monitoring and Intelligent LED Indicator
for Real-time PoE Usage Via the power usage chart
in the web management interface,
the IGS-4215-4P4T2S enables the administrator
to monitor the status of the power usage of the
connected PDs in real time.
Thus, it greatly enhances the management efficiency
of the facilities.
Moreover, the IGS-4215-4P4T2S helps users to monitor
the current status of PoE power usage easily and
efficiently via its advanced LED indication.
Called “PoE Power Usage”, the front panel of the
IGS-4215-4P4T2S has four LED indicators of different power usages.
   Environmentally Hardened Design With the IP30
aluminum industrial case,
the IGS-4215-4P4T2S provides a high level of immunity
against electromagnetic interference and heavy
electrical surges which are usually found on plant
floors or in curb-side traffic control cabinets
without air conditioner.
Being able to operate under the temperature range
from -40 to 75 degrees C,
the IGS-4215-4P4T2S can be placed in almost any
difficult environment.
  IPv6/IPv4 Dual Stack Management Supporting both
IPv6 and IPv4 protocols,
the IGS-4215-4P4T2S helps the system integrators
to step in the IPv6 era with the lowest investment
as its network facilities need not be replaced
or overhauled if the IPv6 network is set up.
  Robust Layer 2 Features The IGS-4215-4P4T2S
can be programmed for advanced switch management
functions such as dynamic port link aggregation,
802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree
Protocol (MSTP),
Loop and BPDU Guard, IGMP Snooping, and MLD Snooping.
Via the link aggregation, the IGS-4215-4P4T2S
allows the operation of a high-speed trunk to
combine with multiple ports such as a 16Gbps fat pipe,
and supports fail-over as well. Also, the Link
Layer Discovery Protocol (LLDP) is the Layer 2
protocol included to help discover basic information
about neighboring devices on the local broadcast domain.
   Efficient Traffic Control The IGS-4215-4P4T2S
is loaded with robust QoS features and powerful
traffic management to enhance services to business-class data,
voice, and video solutions. The functionality
includes broadcast/multicast/unicast storm control,
per port bandwidth control, 802.1p/CoS/IP DSCP
QoS priority and remarking.
It guarantees the best performance in VoIP and
video stream transmission,
and empowers the enterprises to take full advantage
of the limited network resources.
  Friendly and Secure Management For efficient management,
the IGS-4215-4P4T2S is equipped with web, Telnet
and SNMP management interfaces.
With the built-in web-based management interface,
the IGS-4215-4P4T2S offers an easy-to-use, platform-independent
management and configuration facility.
By supporting the standard SNMP, the switch can
be managed via any standard management software.
For text-based management, the switch can be accessed via Telnet.
Moreover, the IGS-4215-4P4T2S offers secure remote
management by supporting SSH,
SSL and SNMP v3 connections which encrypt the
packet content at each session.
   Advanced Network Security PLANET IGS-4215-4P4T2S
offers a comprehensive IPv4/IPv6 Layer 2 to Layer
4 Access Control List (ACL) for enforcing security to the edge.
Its protection mechanism also comprises 802.1X
port-based user and device authentication,
which can be deployed with RADIUS to ensure the
port level security and block illegal users.
With the protected port function, communication
between edge ports can be prevented to guarantee user privacy.
Furthermore, the IGS-4215-4P4T2S also provides
DHCP snooping,
IP source guard and dynamic ARP inspection functions
to prevent IP snooping from attack and discarded
ARP packets with invalid MAC address.
The network administrators can now construct highly-secure
corporate networks with considerably less time
and effort than before.
  Flexibility and Long-distance Extension Solution
The two mini-GBIC slots built in the IGS-4215-4P4T2S
support SFP auto-detection and dual speed as it
features 100BASE-FX and 1000BASE-SX/LX SFP (Small
Form-factor Pluggable) fiber transceivers to uplink
to backbone switch and monitoring center in long distance.
The distance can be extended from 550 meters to
2 kilometers (multi-mode fiber) and up to 10/20/30/40/50/60/70/120
kilometers (single-mode fiber or WDM fiber).
They are well suited for applications within the
enterprise data centers and distributions.
  Intelligent SFP Diagnosis Mechanism The IGS-4215-4P4T2S
supports SFP-DDM (Digital Diagnostic Monitor)
function that greatly helps network administrator
to easily monitor real-time parameters of the SFP,
such as optical output power, optical input power,
temperature, laser bias current, and transceiver
supply voltage.

Technische Details:
