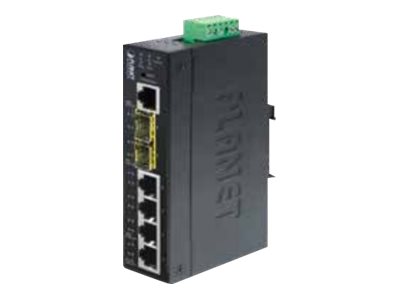

Planet gemanaged L2+ Schwarz Netzwerk-Switch Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

Planet gemanaged L2+ Schwarz Netzwerk-Switch Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

Produktbeschreibung:

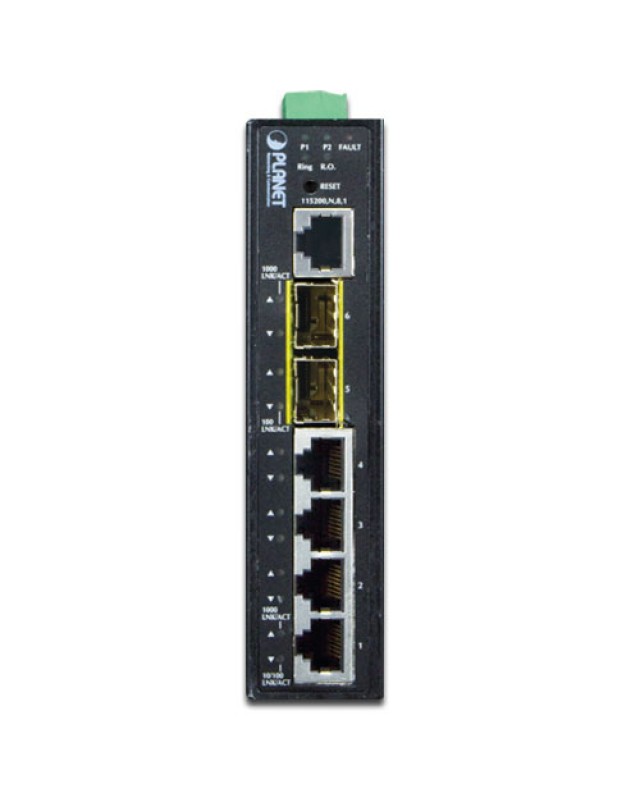

Physical Port 4 10/100/1000BASE-T Gigabit Ethernet
RJ45 ports 2 100/1000BASE-X mini-GBIC/SFP slots
for SFP type auto detection One RJ45 console interface
for basic management and setup   Industrial Case
and Installation IP30 metal case DIN rail and
wall-mount design 12~48V DC,
redundant power with polarity reverse protect
function 24V AC power input acceptable Supports
5000V DC Ethernet ESD protection -40 to 75 degrees
C operating temperature   Layer 2 Features Prevents
packet loss with back pressure (half-duplex) and
IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture,
and runt/CRC filtering eliminates erroneous packets
to optimize the network bandwidth Storm Control
support - Broadcast/Multicast/Unicast Supports
VLAN - IEEE 802.1Q tagged VLAN - Up to 255 VLANs groups,
out of 4094 VLAN IDs- Provider Bridging (VLAN
Q-in-Q) support (IEEE 802.1ad) - Private VLAN
Edge (PVE) - Protocol-based VLAN- MAC-based VLAN-
Voice VLAN Supports Spanning Tree Protocol - IEEE
802.1D Spanning Tree Protocol (STP) - IEEE 802.1w
Rapid Spanning Tree Protocol (RSTP) - IEEE 802.1s
Multiple Spanning Tree Protocol (MSTP),
spanning tree by VLAN - BPDU Guard Supports Link
Aggregation - 802.3ad Link Aggregation Control
Protocol (LACP) - Cisco ether-channel (static
trunk) - Maximum 4 trunk groups with 4 ports per
trunk group - Up to 8Gbps bandwidth (duplex mode)
- Provides port mirror (1-to-1) Port mirroring
to monitor the incoming or outgoing traffic on
a particular port Loop protection to avoid broadcast
loopsv Supports ERPS (Ethernet Ring Protection
Switching)   Layer 3 IP Routing Features Supports
maximum 32 static routes and route summarization
  Quality of Service Ingress Shaper and Egress
Rate Limit per port bandwidth control 8 priority
queues on all switch ports Traffic classification
- IEEE 802.1p CoS - IP TOS/DSCP/IP precedence
- IP TCP/UDP port number - Typical network application
Strict priority and Weighted Round Robin (WRR)
CoS policies Supports QoS and In/Out bandwidth
control on each port Traffic-policing policies
on the switch port DSCP remarking   Multicast
Supports IGMP snooping v1,
v2 and v3 Supports MLD snooping v1 and v2 Querier
mode support IGMP snooping port filtering MLD
snooping port filtering MVR (Multicast VLAN Registration)
  Security IEEE 802.1X Port-based/MAC-based network
access authentication Built-in RADIUS client to
cooperate with the RADIUS servers TACACS+ login
users access authentication RADIUS/TACACS+ users
access authentication IP-based Access Control
List (ACL) MAC-based Access Control List Source
MAC/IP address binding DHCP snooping to filter
distrusted DHCP messages Dynamic ARP Inspection
discards ARP packets with invalid MAC address
to IP address binding IP Source Guard prevents
IP spoofing attacks IP address access management
to prevent unauthorized intruder   Management
Switch Management Interfaces - Console/Telnet
Command Line Interface - Web switch management
- SNMP v1 and v2c switch management - SSH/SSL
and SNMP v3 secure access Four RMON groups (history,
statistics, alarms, and events) IPv6 IP address/NTP/DNS
management Built-in Trivial File Transfer Protocol
(TFTP) client BOOTP and DHCP for IP address assignment
Firmware upload/download via HTTP/TFTP DHCP Relay
DHCP Option 82 User Privilege levels control Network
Time Protocol (NTP) Link Layer Discovery Protocol
(LLDP) SFP-DDM (Digital Diagnostic Monitor) Cable
diagnostic technology provides the mechanism to
detect and report potential cabling issues Reset
button for system reboot or reset to factory default
PLANET Smart Discovery Utility for deployment
management         An Ideal Fiber Switch with
Limited Space PLANET IGS-5225-4T2S is the smallest,
fully-managed Gigabit fiber switch in the industrial
networking industry that features 4 10/100/1000Mbps copper ports,
2 100/1000X SFP ports and redundant power system
in an IP30 rugged but compact-sized case,
can be installed in any difficult environment
without space limitation.
Within such slim enclosure, it provides user-friendly
yet advanced IPv6/IPv4 management interfaces,
abundant L2/L4 switching functions and Layer 3
static routing capability.
The IGS-5225-4T2S can operate stably under the
temperature range from -40 to 75 degrees C and
allows either DIN rail or wall mounting for efficient
use of cabinet space.
With 2 dual-speed SFP fiber slots, it can be flexibly
applied to extend the connection distance.
  Redundant Ring, Fast Recovery for Critical Network
Applications The IGS-5225-4T2S supports redundant
ring technology and features strong,
rapid self-recovery capability to prevent interruptions
and external intrusions.
It incorporates advanced ITU-T G.8032 ERPS (Ethernet
Ring Protection Switching) technology,
Spanning Tree Protocol (802.1s MSTP), and redundant
power input system into customer’s industrial
automation network to enhance system reliability
and uptime in harsh factory environments.
In a certain simple Ring network, the recovery
time of data link can be as fast as 20ms.
  SMTP/SNMP Trap Event Alert The IGS-5225-4T2S
provides event alert function to help to diagnose
the abnormal device owing to whether or not there
is a break of the network connection,
or the rebooting response.   Effective Alarm Alert
for Better Protection The IGS-5225 series supports
a Fault Alarm feature which can alert the users
when there is something wrong with the switches.
With this ideal feature, the users would not have
to waste time finding where the problem is.
It will help to save time and human resource.
  Layer 3 IPv4 and IPv6 Software VLAN Routing
for Secure and Flexible Management To help customers
stay on top of their businesses,
the IGS-5225 series not only provides ultra high
transmission performance and excellent Layer 2 technologies,
but also IPv4/IPv6 software VLAN routing feature
which allows to crossover different VLANs and
different IP addresses for the purpose of having
a highly-secure,
flexible management and simpler networking application.
  Robust Layer 2 Features The IGS-5225 series
can be programmed for advanced switch management
functions such as dynamic port link aggregation,
Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol,
Layer 2 to Layer 4 QoS, bandwidth control and
IGMP snooping.
The IGS-5225 series provides 802.1Q tagged VLAN,
and the VLAN groups allowed will be maximally up to 255.
Via aggregation of supporting ports, the IGS-5225-4T2S
allows the operation of a high-speed trunk combining
multiple ports.
It enables a maximum of up to 10 trunk groups
with 8 ports per trunk group,
and supports fail-over as well.   Efficient Management
For efficient management,
the IGS-5225 Managed Ethernet Switch series is
equipped with console,
Web and SNMP management interfaces. With the built-in
Web-based management interface,
the IGS-5225 series offers an easy-to-use, platform-independent
management and configuration facility.
For text-based management, the IGS-5225 series
can be accessed via Telnet and the console port.
Moreover, it also offers secure remote management
via any standard-based management software by
supporting SNMPv3 connection which encrypts the
packet content at each session.
  Powerful Security The IGS-5225 series offers
comprehensive Layer 2 to Layer 4 Access Control
List (ACL) for enforcing security to the edge.
It can be used to restrict network access by denying
packets based on source and destination IP address,
TCP/UDP ports or defined typical network applications.
Its protection mechanism also comprises 802.1X
Port-based and MAC-based user and device authentication.
With the private VLAN function, communication
between edge ports can be prevented to ensure user privacy.
The network administrators can now construct highly-secure
corporate networks with considerably less time
and effort than before.
  Flexibility and Extension Solution The additional
two mini-GBIC slots built in the IGS-5225-4T2S
support dual speed,
100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor
Pluggable) fiber-optic modules,
meaning the administrator now can flexibly choose
the suitable SFP transceiver according to not
only the transmission distance but also the transmission
speed required.
The distance can be extended from 550 meters (multi-mode
fiber) to 10/50/70/120 kilometers (single-mode
fiber or WDM fiber).
They are well suited for applications within the
enterprise data centers and distributions.
  Intelligent SFP Diagnosis Mechanism The IGS-5225
series supports SFP-DDM (Digital Diagnostic Monitor)
function that greatly helps network administrator
to easily monitor real-time parameters of the SFP,
such as optical output power, optical input power,
temperature, laser bias current, and transceiver
supply voltage.
  1588 Time Protocol for Industrial Computing
Networks The IGS-5225 series is ideal for telecom
and Carrier Ethernet applications,
supporting MEF service delivery and timing over
packet solutions for IEEE 1588 and synchronous Ethernet.
  Modbus TCP provides Flexible Network Connectivity
for Factory Automation With the supported Modbus
TCP/IP protocol,
the IGS-5225 series can easily integrate with
SCADA systems,
HMI systems and other data acquisition systems
in factory floors.
It enable administrators to remotely monitor the
industrial Ethernet switch’s operating information,
port information and communication status, thus
easily achieving enhanced monitoring and maintenance
of the entire factory.
