Planet
Layer
3
12-Port
10
GBASE-X
SFP+
Managed
Ethernet
Switch
Gbps
Artikel-Nr.: 999947693
Hersteller-Nr.: XGS-6311-12X

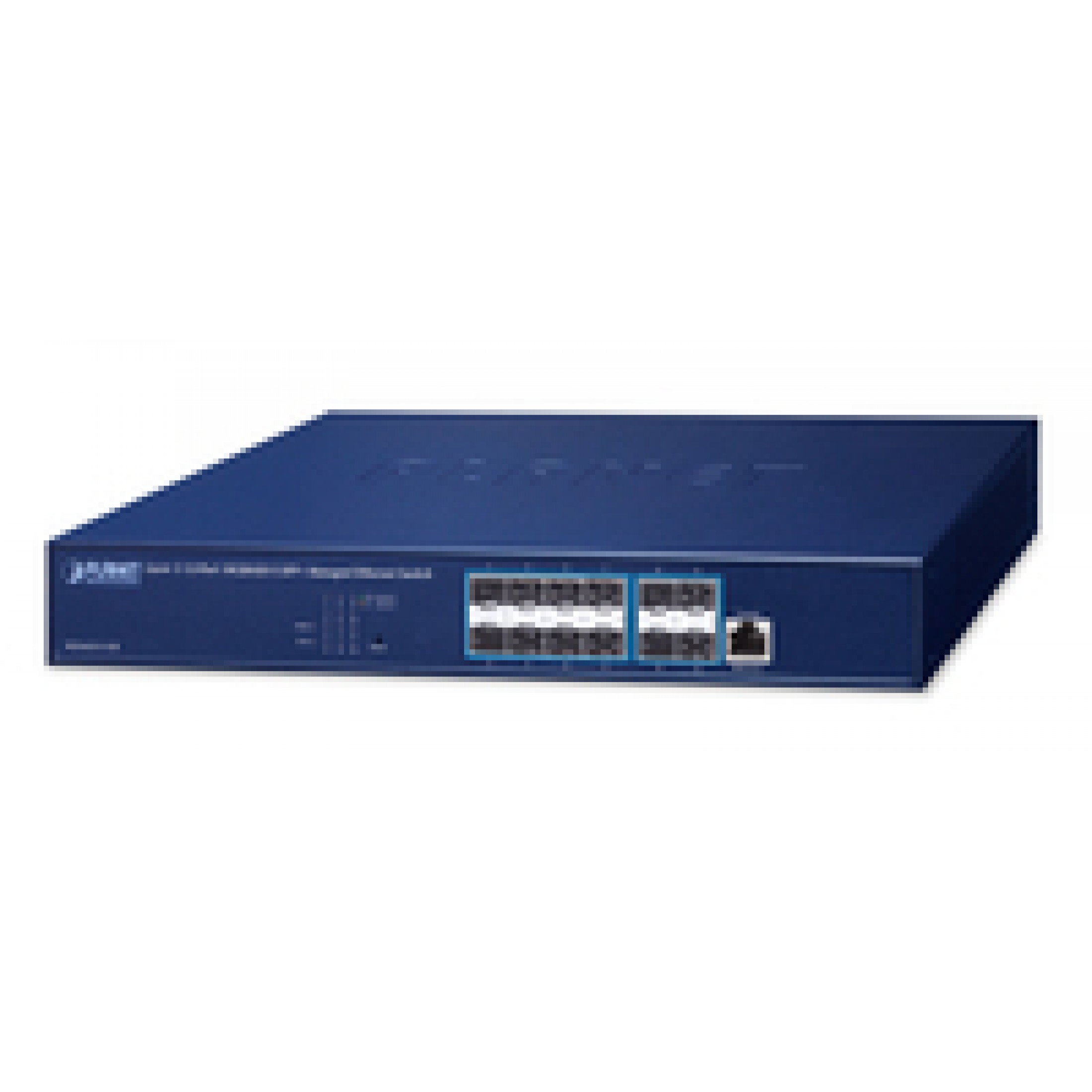

Planet Layer 3 12-Port 10 GBASE-X SFP+ Managed Ethernet Switch GbpsProduktbeschreibung:12x 10 GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP RJ45 type RS232 console interface for switch basic management and setup IP Routing Features: IP routing protocol supports RIPv1/v2, OSPFv2 Routing interface provides per VLAN routing mode  Supports route redistribution  Layer 2 Features: Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard Prevents packet loss flow control IEEE 802.3x pause frame flow control in full-duplex mode Back pressure flow control in half-duplex mode High performance Store-and-Forward architecture, broadcast storm control, port loopback detection 32K MAC address table, automatic source address learning and aging Supports VLAN IEEE 802.1Q tag-based VLAN GVRP for dynamic VLAN management Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported Private VLAN Edge (PVE) supported GVRP protocol for Management VLAN Protocol-based VLAN MAC-based VLAN IP subnet VLAN Supports Link Aggregation Maximum 64 trunk groups, up to 8 ports per trunk group IEEE 802.3ad LACP (Link Aggregation Control Protocol) Cisco ether-channel (static trunk) Supports Spanning Tree Protocol STP, IEEE 802.1D (Classic Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) Supports BPDU & root guard Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many) Provides port mirror (many-to-1) Supports G.8032 ERPS (Ethernet Ring Protection Switching) Quality of Service: 8 priority queues on all switch ports Support for strict priority and WRR (Weighted Round Robin) CoS policies Traffic classification IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR Strict priority and WRR CoS policies Multicast: Supports IPv4 IGMP snooping v1, v2 and v3 Supports IPv6 MLD v1 and v2 snooping Querier mode support Supports Multicast VLAN Register (MVR) Security: IEEE 802.1x port-based network access authentication MAC-based network access authentication  Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6 TACACS+ login users access authentication IP-based Access Control List (ACL) MAC-based Access Control List Supports DHCP snooping Supports ARP inspection IP Source Guard prevents IP spoofing attacks Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding Management: Management IP for IPv4 and IPv6 Switch Management Interface Console/Telnet Command Line Interface  Web switch management SNMP v1, v2c, and v3 switch management SSH/SSL/TLS secure access BOOTP and DHCP for IP address assignment Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6 SNTP (Simple Network Time Protocol) for IPv4 and IPv6 User privilege levels control Syslog server for IPv4 and IPv6 Supports DDM Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) Supports sFlow Supports ULDP Supports ULPP (Uplink Protection Protocol) Supports ULSM (Uplink State Monitor protocol) Supports LLDP/LLDP MED Supports DHCP Option82/43/60/61/67 Supports ping, trace route function for IPv4 and IPv6 PLANET Smart Discovery Utility for deployment managementTechnische Details:AllgemeinesTypSwitchDiverse Produktfeatures (Wasserdicht, Lautstärkeregler, ...)ManagedBauformRack-ModulSchnittstellen/KonnektivitätPortzahl12-PortÜbertragungsmodusVoll-DuplexUniverselle SchnittstellenRS-232NetzwerkNetzwerkprotokolleARP; BOOTP; DHCP; HTTP; IPv6; RMON; SNMP; SNTP; TCP/IP; TelnetNetzwerkstandardsEthernetNetzwerkportsRJ-45; RS-232Technische DatenÜbertragungsrate10 GbpsNetzwerk/Telefon-ZusatzfunktionenTelefonbuchRack Höheneinheiten1 HESonstiges / ZubehörKennzeichnungCE; FCC
