Produktbeschreibung:

4-port 10/100/1000Base-T RJ-45 with IEEE 802.3af /
802.3at PoE Injector 2-port SFP slot interface,
SFP supports 1000Base-X and 100Base-FX transceiver
via DIP switch configured Power over Ethernet
Complies with IEEE 802.3af /
IEEE 802.3at Power over Ethernet Plus End-Span
PSE Up to 4 IEEE 802.3af /
802.3at devices powered   Supports PoE Power up
to 30.8 watts for each PoE port Provides DC 52V
power over RJ-45 Ethernet cable to PD with Ethernet
port Auto-detects EEE 802.3af/at equipment and
protects devices from being damaged by incorrect
installation Remote power feeding up to 100m Layer
2 Features Supports Auto-Negotiation and 10/100Mbps half /
full duplex and 1000Mbps full duplex mode Prevents
packet loss with back pressure (half-duplex) and
IEEE 802.3x PAUSE frame flow control (full-duplex)
Automatic address learning and address aging Industrial Case /
Installation IP30 aluminum metal case protection
Dual SFP Ports Auto Link Redundant Mode Support
DIN Rail and Wall Mount Design 48V DC redundant
power with polarity reverse protect function and
removable terminal block for master and slave
power Supports EFT protection 6000 VDC for power
line Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature   Long
Distance High Power PoE and Gigabit Data Extension

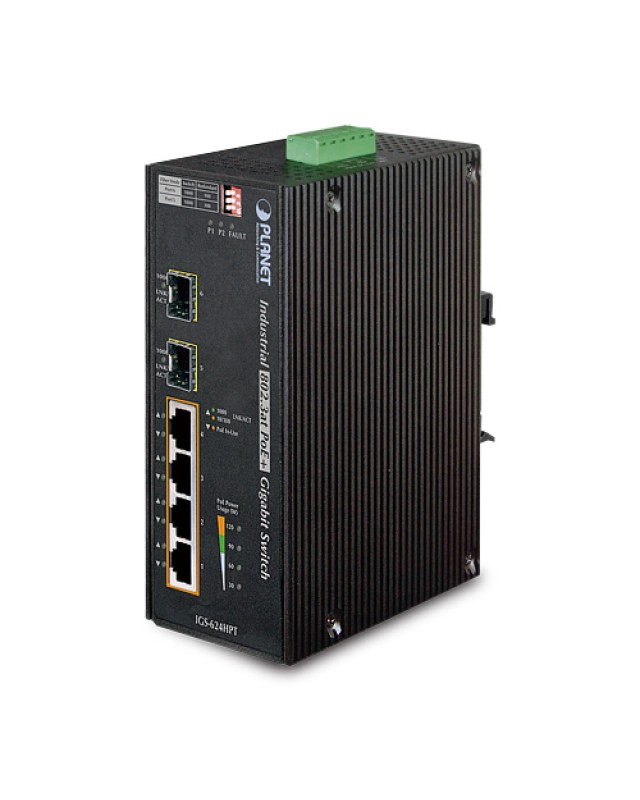

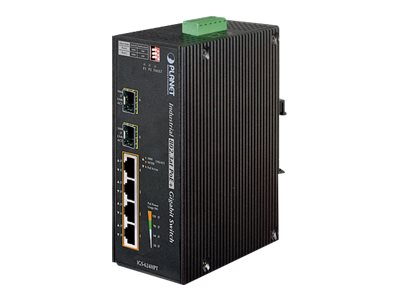

Solution The PLANET IGS-624HPT is an Industrial
Gigabit 802.3at PoE+ Switch providing non-blocking
wire-speed performance and great flexibility for
Gigabit Ethernet extension in harsh industrial environment.
It provides 4-port 10/100/1000Base-T copper with
802.3af/at PoE injector and 2 extra 100/1000Base-X
SFP fiber optic interfaces delivered in an IP30
rugged strong case with redundant power system.
The IGS-624HPT is well suited for applications
in deploying surveillance system,
and securing control and wireless service in climatically
demanding environments with wide temperature range
from -40 to 75 degrees C.
  High Power PoE for Security and Public Service
Applications To fulfill the demand of High Power
PoE for network applications,
the IGS-624HPT provides 4 10/100/1000Mbps ports
featuring both IEEE 802.3af and IEEE 802.3at Power
over Ethernet Plus (PoE+) that combine up to 30-watt
of power output and data per port over one Cat.5E /
6 Ethernet cable. With totally 120-watt PoE output
capability on the whole system,
the IGS-624HPT is designed specifically to satisfy
the growing demand of higher power consuming network
PD (powered devices) such as PTZ (Pan,
Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a /
b / g / n) outdoor wireless LAN access points
and other PoE network devices by providing double PoE power,
rather than the current conventional 802.3af PoE.
   Intelligent LED Indicator for Real-time PoE
Usage The IGS-624HPT helps users to monitor current
status of PoE power usage easily and efficiently
by its advanced LED indication.
Called “PoE Power Usage”, the front panel of the
Industrial Gigabit PoE+ Switch has four orange
LEDs indicating 30W,
60W, 90W and 120W of PoE power usage.    Convenient
and Reliable Power System To facilitate the 802.3at
High Power PoE usage with the commonly used 48V
DC power input in transportation and industrial-level applications,
the IGS-624HPT adopts 48V DC to 52V DC power boost
technology to solve power source issue which is
not required for special power supplies to achieve
the level of High Power PoE+ output.
To enhance the operation reliability and flexibility,
the IGS-624HPT is equipped with two DC power input
connectors for redundant power supply installation.
     High Power Budget for PoE Extension With
30-watt PoE output capability,
the IGS-624HPT can extend much longer distance
by using PLANET PoE Extender for powering up the
IEEE 802.3af PoE PD devices which can be installed
over more than 100 meters away.
By daisy-chaining multiple PLANET PoE Extenders,
it offers the great flexibility of doubling, tripling
or quadrupling the distance of PoE network.
   Environmentally Hardened Design The IGS-624HPT
is equipped with the rugged IP30 metal case for
easy deployment in heavy Industrial demanding environments.
With IP30 industrial case protection, the IGS-624HPT
provides a high level of immunity against electromagnetic
interference and heavy electrical surges which
are usually found on plant floors or in curb side
traffic control cabinets.
Being able to operate under the temperature range
from -40 to 75 degrees C,
the IGS-624HPT can be placed in almost any difficult environment.
The IGS-624HPT also allows either DIN rail or
wall mounting for efficient use of cabinet space.
  Fiber-Optical Link Capability Extend the Range
of Network Deployment The two SFP slots are compatible
with 100Base-FX or 1000Base-SX /
LX / WDM through SFP (Small Form Factor Pluggable)
fiber-optic transceivers.
The fiber optical uplink capability guarantees
the throughput to all nodes hooked into the network
and the Gigabit Ethernet distance can be extended
from 550 meters (Multi-Mode fiber cable) up to
10/20/30/40/50/70/120 kilometers (Single-Mode
fiber or WDM fiber).
     Adjustable 6-Port Switch Mode or 4 + 2 Fiber
Redundant Mode Via the built-in DIP switch,
the IGS-624HPT can be configured as 6-port Ethernet
switch or 4+2 fiber redundant mode.
With the 6-port switch mode, the IGS-624HPT can
operate in Store-and-Forward mechanism with high performance;
on the other hand, when in the 4+2 fiber redundant mode,
it provides rapid fiber redundancy of link for
highly critical Ethernet applications.
The redundant mode also supports auto-recovering function.
If the destination port of a packet is link down,
it will forward the packet to the other port of
the backup pair.
