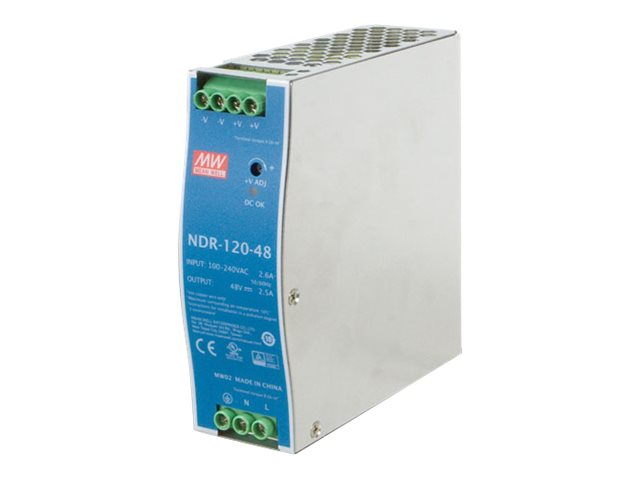

Planet MEAN WELL NDR-120-48 Stromversorgung DIN-Schienenmontage möglich Wechselstrom 100-240 V 120 Watt
53,79 €
Artikel-Nr.: 994243614
Hersteller-Nr.: PWR-120-48
GTIN: 4711605283335
Auf Lager, Lieferzeit 1-2 Werktage
Produktnummer:
994243614
| Allgemein | |
|---|---|
| Unterkategorie | Stromversorgungen |
| Produkttyp | Netzteil |
| Stromversorgungsgerät | |
| Formfaktor | DIN-Schienenmontage möglich |
| Kompatibilität der Stromversorgung | Netzwerkhardware |
| Gestellte Leistung | 120 Watt |
| Geleistete Netzspannung | DC 48 V |
| Erforderliche Netzspannung | Wechselstrom 100-240 V |
| Nötige Frequenz | 50/60 Hz |
| Leistungsgerätemerkmale | Überhitzungsschutz, Überspannungsschutz, Überlastungsschutz, Kurzschlussschutz |
| Verschiedenes | |
| Farbkategorie | Blau, Grau |
| Kennzeichnung | FCC, EN 60950-1, UL 508, EN 60204-1 |
| Abmessungen und Gewicht | |
| Breite | 4 cm |
| Tiefe | 12,5 cm |
| Höhe | 11,3 cm |
| Gewicht | 600 g |
| Umgebungsbedingungen | |
| Min Betriebstemperatur | -20 °C |
| Max. Betriebstemperatur | 70 °C |
| Zulässige Luftfeuchtigkeit im Betrieb | 20 - 95% |
Produktbeschreibung
Planet MEAN WELL NDR-120-48 Stromversorgung DIN-Schienenmontage möglich Wechselstrom 100-240 V 120 Watt
Produktbeschreibung:
Universal AC input / full range AC input rangeselectable by switch Protection: short circuit /
overload / over voltage / over temperature Cooling
by free air convection For installation on DIN
rail TS-35/7.5 or 15 UL 508 (industrial control
equipment) approved LED indicator for power on
100% full load burn-in test Fixed switching frequency
at 55KHz Compact Size with more Practicability
and Convenience PLANET has released PWR series
for industrial Ethernet devices specially designed
for the harsh working environment where sometimes
it is hard to find suitable DC voltage power source.
The PWR series offered includes DC single output
industrial DIN rail power supply units which accept
universal 100-240 AC input voltage or DC input
and provide 24V /
48V DC power output with various watt values.
They are designed in compact size and can be installed
on DIN rail TS-35 /
7.5 or 15. It is an ideal and convenient DC power
feeding solution for industrial equipment under
heavy Industrial environments.
Stable Performance under Difficult Environments
The DC Single Output Industrial DIN Rail Power
Supply Units provides various models with short
circuit/overload/over voltage and over temperature
protections for the stable operation of Industrial
Ethernet equipment.
As they adopt the free air convection cooling system,
they are able to operate under the temperature
ranging from -20 to 70 degrees C (maximum).
Thus, the DC single output industrial DIN rail
power supply units can be placed in almost any
difficult environments.
Technische Details:
Allgemein
Gerätetyp
Netzteil - DIN-Schienenmontage möglich
Stromversorgungsgerät
Eingangsspannung
Wechselstrom 100-240 V
Nötige Frequenz
50/60 Hz
Ausgangsspannung
DC 48 V
Leistungskapazität
120 Watt
Verschiedenes
Besonderheiten
Überhitzungsschutz, Überspannungsschutz, Überlastungsschutz, Kurzschlussschutz
Kennzeichnung
FCC, EN 60950-1, UL 508, EN 60204-1
Umgebungsbedingungen
Min Betriebstemperatur
-20 °C
Max. Betriebstemperatur
70 °C
Zulässige Luftfeuchtigkeit im Betrieb
20 - 95%
Abmessungen und Gewicht
Breite
4 cm
Tiefe
12,5 cm
Höhe
11,3 cm
Gewicht
600 g
