Produktbeschreibung:

8x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
with IEEE 802.3at PoE+ Injector 2x 100/1000BASE-X
mini-GBIC/SFP slots for SFP type auto detection
One RJ45 console interface for basic management
and setup   Power over Ethernet Complies with
IEEE 802.3at Power over Ethernet Plus/end-span
PSE Up to 8 IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE
port Auto detects powered device (PD) Circuit
protection prevents power interference between
ports Remote power feeding up to 100m PoE management
features - IEEE 802.3af and IEEE 802.3at mode
switch control - Total PoE power budget control
- Per port PoE function enable/disable - PoE admin-mode
control - PoE port power feeding priority - Per
PoE port power limit - PD classification detection
- Temperature threshold control - PoE usage threshold
control - PD alive check - PoE schedule   Industrial
Case & Installation IP30 aluminum case protection

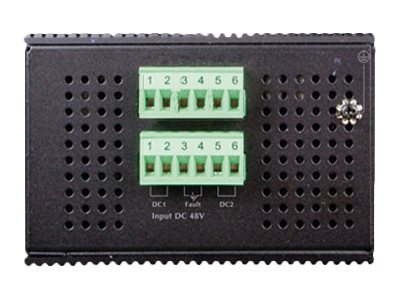

DIN rail and wall-mount design 48V DC,
redundant power with polarity reverse protect
function Supports EFT protection of 6000 VDC for
power line Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature   Digital
Input & Digital Output 2 Digital Input (DI) 2
Digital Output (DO) Integrate sensors into auto
alarm system Transfer alarm to IP network via
email and SNMP trap   Layer 2 Features Prevents
packet loss with back pressure (half-duplex) and
IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture,
and runt/CRC filtering eliminates erroneous packets
to optimize the network bandwidth Storm Control
support - Broadcast/Multicast/Unicast Supports
VLAN - IEEE 802.1Q tagged VLAN - Up to 255 VLANs groups,
out of 4094 VLAN IDs - Provider Bridging (VLAN
Q-in-Q) support (IEEE 802.1ad) - Private VLAN
Edge (PVE) - Protocol-based VLAN - MAC-based VLAN
- Voice VLAN Supports Spanning Tree Protocol -
IEEE 802.1D Spanning Tree Protocol (STP) - IEEE
802.1w Rapid Spanning Tree Protocol (RSTP) - IEEE
802.1s Multiple Spanning Tree Protocol,
spanning tree by VLAN (MSTP) - BPDU Guard Supports
Link Aggregation - 802.3ad Link Aggregation Control
Protocol (LACP) - Cisco ether-channel (static
trunk) - Maximum 5 trunk groups with 8 ports per
trunk group - Up to 16Gbps bandwidth (duplex mode)
Provides port mirror (1-to-1) Port mirroring to
monitor the incoming or outgoing traffic on a
particular port Loop protection to avoid broadcast
loops Supports ERPS (Ethernet Ring Protection
Switching)   Layer 3 IP Routing Features Supports
maximum 32 software static routes and route summarization
  Quality of Service Ingress Shaper and Egress
Rate Limit per port bandwidth control 8 priority
queues on all switch ports Traffic classification
- IEEE 802.1p CoS - IP TOS/DSCP/IP precedence
- IP TCP/UDP port number - Typical network application
Strict priority and Weighted Round Robin (WRR)
CoS policies Supports QoS and In/Out bandwidth
control on each port Traffic-policing policies
on the switch port DSCP remarking   Multicast
Supports IGMP snooping v1,
v2 and v3 Supports MLD snooping v1 and v2 Querier
mode support IGMP snooping port filtering MLD
snooping port filtering MVR (Multicast VLAN Registration)
  Security IEEE 802.1x Port-based/MAC-based network
access authentication Built-in RADIUS client to
cooperate with the RADIUS servers TACACS+ login
users access authentication RADIUS/TACACS+ users
access authentication IP-based Access Control
List (ACL) MAC-based Access Control List Source
MAC/IP address binding DHCP snooping to filter
distrusted DHCP messages Dynamic ARP Inspection
discards ARP packets with invalid MAC address
to IP address binding IP Source Guard prevents
IP spoofing attacks IP address access management
to prevent unauthorized intruder   Management
Switch Management Interfaces - Console/Telnet
Command Line Interface - Web switch management
- SNMP v1 and v2c switch management - SSH/SSL
and SNMP v3 secure access Four RMON groups (history,
statistics, alarms, and events) IPv6 IP address/NTP/DNS
management Built-in Trivial File Transfer Protocol
(TFTP) client BOOTP and DHCP for IP address assignment
Firmware upload/download via HTTP/TFTP DHCP Relay
DHCP Option 82 User Privilege levels control Network
Time Protocol (NTP) Link Layer Discovery Protocol
(LLDP) SFP-DDM (Digital Diagnostic Monitor) Cable
diagnostic technology provides the mechanism to
detect and report potential cabling issues Reset
button for system reboot or reset to factory default
PLANET Smart Discovery Utility for deployment
management    Environmentally Hardened Design

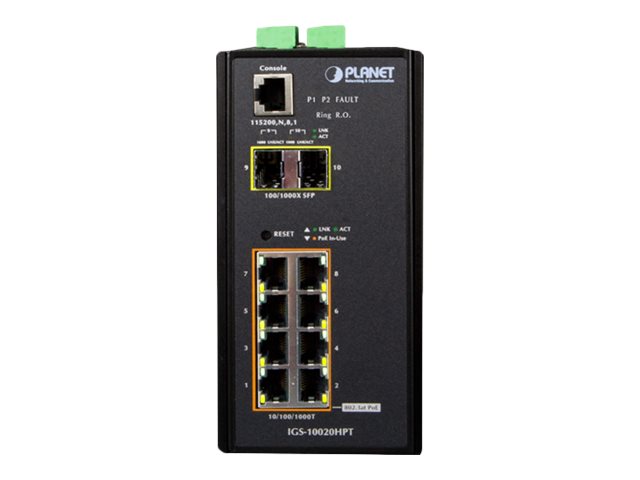

PLANET Industrial 8-Port Gigabit 802.3at PoE Switch,
IGS-10020HPT, is equipped with rugged IP30 metal
case for stable operation in heavy Industrial
demanding environments.
With IP30 industrial case protection, the IGS-10020HPT
provides a high level of immunity against electromagnetic
interference and heavy electrical surges which
are usually found on plant floors or in curbside
traffic control cabinets.
Being able to operate under wide temperature range
from -40 to 75 degrees C,
the IGS-10020HPT can be placed in almost any difficult environment.

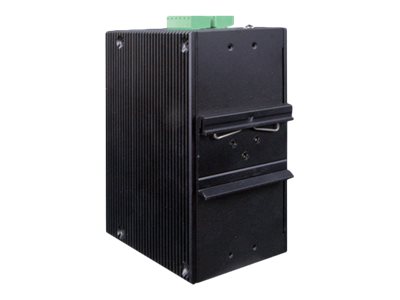

The IGS-10020HPT also allows either DIN rail or
wall mounting for efficient use of cabinet space.
   Redundant Ring, Fast Recovery for Surveillance
System The IGS-10020HPT supports redundant ring
technology and features strong rapid self-recovery
capability to prevent interruptions and external intrusions.
It incorporates advanced Redundant Ringtechnology,
Spanning Tree Protocol (802.1w RSTP), and redundant
power supply system into customer’s industrial
automation network to enhance system reliability
and uptime in harsh factory environments.
The IGS-10020HPT also protects customer’s industrial
network connectivity with switching recovery capability
that is used for implementing fault tolerant ring
and mesh network architectures.
If the Industrial network was interrupted accidentally,
the fault recovery times could be less than 50ms
to quickly bring the network back to normal operation.
   High Power PoE for Security and Public Service
Applications To fulfill the demand of High Power
PoE for network applications with Gigabit speed
transmission under wide temperature,
the IGS-10020HPT provides 8 10/100/1000Mbps ports
featuring both IEEE 802.3af and High Power IEEE
802.3at Power over Ethernet (PoE) that combines
up to 270-watt power output and data per port
over one Cat.5E /
6 Ethernet cable. With a total 270-watt PoE budget
on the whole system,
the IGS-10020HPT is designed specifically to satisfy
the growing demand of higher power consuming network
PDs (powered devices) such as PTZ (Pan,
Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a /
b / g / n) wireless LAN access points and other
PoE network devices by providing PoE power double
that the current conventional 802.3af PoE.
   Intelligent Alive Check for Powered Device
The IGS-10020HPT PoE Switch can be configured
to monitor connected PD’s status in real-time
via ping action.
Once the PD stops working and responding, the
IGS-10020HPT will recycle the PoE port power and
bring the PD back to work.
It also greatly enhances the reliability owing
that the PoE port will reset the PD power,
thus reducing administrator’s management burden.
   PoE Schedule for Energy Saving Under the trend
of energy saving worldwide and contributing to
environmental protection on the Earth,
the IGS-10020HPT can effectively control the power
supply besides its capability of giving high watts power.
The built-in “PoE schedule” function helps you
to enable or disable PoE power feeding for each
PoE port during specified time intervals and it
is a powerful function to help SMB or enterprise
save power and money.
   Digital Input and Digital Output for External
Alarm The IGS-10020HPT supports Digital Input
and Digital Output on its front panel.
This external alarm enables users to use Digital
Input to detect and log external device status
(such as door intrusion detector ),
and send event alarm to the administrators. The
Digital Output could be used to alarm the administrators
if the IGS-10020HPT port shows link down,
link up or power failure.    Layer 3 IPv4 and
IPv6 Software VLAN Routing for Secure and Flexible
Management To help customers stay on top of their businesses,
the IGS-10020 series not only provides ultra high
transmission performance and excellent Layer 2 technologies,
but also IPv4/IPv6 software VLAN routing feature
which allows to crossover different VLANs and
different IP addresses for the purpose of having
a highly secured,
flexible management and simpler networking application.
  Robust Layer 2 Features The IGS-10020HPT can
be programmed for advanced switch management functions
such as dynamic port link aggregation,
Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol,
Layer 2 to Layer 4 QoS, bandwidth control and
IGMP snooping.
The IGS-10020HPT provides 802.1Q tagged VLAN,
and the VLAN groups allowed will be maximally up to 255.
Via aggregation of supporting ports, the IGS-10020HPT
allows the operation of a high-speed trunk combining
multiple ports.
It enables a maximum up to 5 trunk groups with
8 ports per trunking,
and supports fail-over as well.   Efficient Management
For efficient management,
the IGS-10020HPT Managed Ethernet Switch is equipped with console,
Web and SNMP management interfaces. With the built-in
Web-based management interface,
the IGS-10020HPT offers an easy-to-use, platform-independent
management and configuration facility.
For text-based management, the IGS-10020HPT can
be accessed via Telnet and the console port.
Moreover, it also offers secure remote management
via any standard-based management software by
supporting SNMPv3 connection which encrypts the
packet content at each session.
  Powerful Security The IGS-10020HPT offers comprehensive
Layer 2 to Layer 4 Access Control List (ACL) for
enforcing security to the edge.
It can be used to restrict network access by denying
packets based on source and destination IP address,
TCP/UDP ports or defined typical network applications.
Its protection mechanism also comprises 802.1x
Port-nased and MAC-based user and device authentication.
With the private VLAN function, communication
between edge ports can be prevented to ensure user privacy.
The network administrators can now construct highly
secured corporate networks with considerably less
time and effort than before.
  Flexibility and Extension Solution The two mini-GBIC
slots built in the IGS-10020HPT support dual speed,
100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor
Pluggable) fiber-optic modules,
meaning the administrator now can flexibly choose
the suitable SFP transceiver according to not
only the transmission distance but also the transmission
speed required.
The distance can be extended from 550 meters (multi-mode
fiber) up to 10/50/70/120 kilometers (single-mode
fiber or WDM fiber).
They are well suited for applications within the
enterprise data centers and distributions.
  Perfect Integration Solution for Outdoor IP
PoE Camera and NVR System The IGS-10020HPT provides
8 10/100/1000Mbps 802.3at PoE ports and can offer
sufficient PoE power for 8 PoE IP cameras at the same time.
In addition, with the 2 100/1000BASE-X SFP interfaces,
the IGS-10020HPT can connect to core fiber switch
and send video stream to NVR and monitoring center.
Through the high performance switch architecture,
the IGS-10020HPT facilitates the recorded video
files from the 8 PoE IP cameras to be saved in
the NVR systems.
Furthermore, the NVR systems can be controlled
and monitored both in the local LAN and the remote
site via Internet.
The IGS-10020HPT undoubtedly brings an ideal secure
surveillance system at a lower total cost.

Technische Details:
