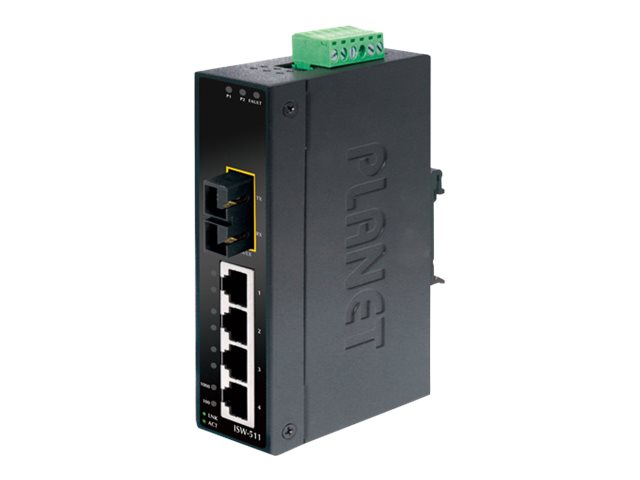

Planet Switch 4 x 10/100 + 1 x 100Base-FX an DIN-Schiene montierbar wandmontierbar Gleichstrom

Planet Switch 4 x 10/100 + 1 x 100Base-FX an DIN-Schiene montierbar wandmontierbar Gleichstrom

Produktbeschreibung:

4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X
function 1-port 100Base-FX interface for up to
2km (Multi-mode fiber 50µm/125µm) on ISW-511 1-port
100Base-FX interface for up to 15km (Single-mode
fiber 9µm/125µm) on ISW-511S15   Layer 2 Features
Complies with IEEE 802.3,
IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet
standard Supports auto negotiation and 10/100Mbps half /
full duplex mode for each copper port High performance
Store and Forward architecture Prevents packet
loss with back pressure (half-duplex) and IEEE
802.3x pause frame flow control (full-duplex)
Backplane (Switching Fabric): 1Gbps Integrated
address look-up engine,
support 2K absolute MAC addresses 1 Mbit on-chip
frame buffer Automatic address learning and address
aging CSMA/CD Protocol   Industrial Case /
Installation IP-30 metal case / protection DIN
rail and wall mount design 12 to 48V DC,
redundant power with polarity reverse protect
function and connective removable terminal block
for master and slave power Supports EFT protection
6000 VDC for power line Supports 6000 VDC Ethernet
ESD protection -10 to 60 degrees C operating temperature
    New slim type with more practicability and
convenience PLANET has released the ISW-511 /
ISW-511S15, an advanced industrial hardened Ethernet
Switch with new slim type,
IP-30 metal case. They each are equipped with
4 10/100Base-TX auto-negotiation ports.
The ISW-511 has one 100Base-FX multi-mode SC interface
for transmission distance up to 2km,
and the ISW-511S15 has one 100Base-FX single-mode
SC interface for transmission distance up to 15km.
Both of them operate reliably in Heavy Industrial
demanding environments.
The compact, IP-30 standard metal case allows
either DIN rail or wall mounting for efficient
use of cabinet space.
  Stable Operating Performance under Difficult
Environments The ISW-511 /
ISW-511S15 provides a high level of immunity against
electromagnetic interference and heavy electrical
surges which are usually found on plant floors
or in curb side traffic control cabinets.
Being able to operate under the temperature range
from -10 to 60 degrees C,
the ISW-511 / ISW-511S15 can be placed in almost
any difficult environment.
The ISW-511 / ISW-511S15 also possesses an integrated
power supply source with wide range of voltages
(12 to 48V DC) for worldwide high availability
applications requiring dual or backup power inputs.
  Robust Switch performance The ISW-511 / ISW-511S15
each provides four 10/100Base-TX Ethernet ports
and one 100Base-FX optic-fiber SC interface,
and boasts a high performance switch architecture
that is capable of providing non-blocking switch
fabric and wire-speed throughput as high as 1Gbps.
With 2K MAC address table, they offer wire-speed
packets transfer performance without risk of packet loss.
The Flow Control function allows the ISW-511 /
ISW-511S15 for fast and reliable data transfer.
  All of the RJ-45 copper interfaces in the ISW-511 /
ISW-511S15 support 10/100Mbps auto negotiation
for optimal speed detection through RJ-45 Category 3,
4 or 5 cables. The standard auto-MDI/MDI-X support
can detect the type of connection to any Ethernet
device without requiring special straight or crossover cables.
